How to create a static pod in Kubernetes with demos that can help you become a better Kubernetes administrator

BLOG-LOGO

What is a container? The concept of pods is very important because it’s just as a cell is to the human body (the basic unit of life), but before we talk about pods and most especially static pods, let’s briefly talk about containers and Kubernetes. Containers have become mainstream because they can be used to virtualize any software whether it is a small piece of an application or even a large enterprise-grade application. This is because they come bundled with every piece of software needed for the application to run, which are executables, binary code, libraries, and configuration files. The reason why containers have become a mainstay in the software development space is that they do not have operating system images and as such, they are not heavy at all, this uniqueness gives them the advantage of being light and portable and this is a very important benefit with regards to cost saving for businesses.

Benefits of Containers

- Reduced Cost of Operation: As mentioned in the introduction, they come bundled with all the pieces  required to make an application run with no extra cost outlay.
- Handy and compact: Because of how portable they are they can be made to run in lots machines and  operating system at the same time.
- Reliability and consistency: The result will always be the same regardless of the platform where they are deployed.
- Efficiency: They can be used to scale up or scale down capacity as required and as such the desired result required from a service or an app is increased.

Practical use cases of containers

  1. Migration of application from their old state to a modern environment. This can be an application that is being moved from an on-premise environment to a cloud environment
  2. Refactor an existing monolithic application for container as most applications can feel out of date in a short while
  3. Provides Devops support for CI/CD as container technology provides the needed support for test, build

How Kubernetes relates to containers

Kubernetes is a container orchestrator which in simple terms means that it is used to manage containers, it also recognizes other container run time technologies such as docker. For the fact that it is open source and the most currently used and popular container orchestrator used today. We shall deep-dive into it. It is good to mention that Kubernetes can run different types of workload but it’s best for use with the microservices category of workloads.

Kubernetes Architecture

Kubernetes takes after the pattern of the server-client model architecture. The components are made up of etcd cluster, kube-apiserver, kube-controller-manager, scheduler.

Master Components of Kubernetes

  1. etcd cluster: This is a distributed key value store that is used to store information gotten from the cluster, these information can be namespaces, number of pods and even their state
  2. kube-apiserver: This is the main tool that is used to manage everything within a kubernetes cluster,  it accepts REST requests for (to pods, services, replication sets/controllers and others), literally providing the service of frontend to the cluster
  3. kube-controller-manager: Runs background processes to make sure that state information that is needed by all processes are well distributed and it also makes sure that rountine task are performed without any issues.
  4. kube-scheduler: Helps to schedule the pods on the number of available nodes as per the required operational specification and requirements

Node Components of Kubernetes

  1. kubelet: This is the component responsible for making sure the state of the pod is running in the desire form and it also reports to the host about state of the pods
  2. kube-proxy: This is responsible for service discovery on the worker nodes and makes sure that each node has the required subnet and gets exposed to the public.
  3. Kubectl: Kubectl is kubernetes’s command line tool, whether you are using minikube , microk8s any of the cloud provider’s offerings such as Google Kubernetes Engine (GKE) or Azure Kubernetes Engine (AKE) you need a command line tool to be able to communicate with kube-apiserver, the commands are passed commands in the form of Api calls to the master node.

Important Kubernetes Concepts

To give you an understanding of what’s happening to the system at any given time Kubernetes makes use of abstractions such as services, pods, volumes, namespaces, and deployments

  1. Namespaces: These are virtual clusters, a single non-virtual cluster can be used for lots of virtual ones. Namespaces are usually used when the number of users and also the projects are many, and as such for the purpose of uniqueness and being organized and also the accountability of resources.
  2. Pods– This is the smallest unit of an application and its consist of a container or two. A pod encapsulate settings for running the containers.
  3. Volumes: This is a directory that contains data accessible to containers in a given Pod in the orchestration and scheduling platform. The concept of volumes in Kubernetes is not different from how you would use it in Docker. in docker you create a volume in the /var/lib/volume directory which is known as volume mount, you also have volumes that are either files or directories that you can extend their capabilities from anywhere in the docker environment using the full path of the directory. these are known as bind mount.
  4. Deployments: This is a resource object in Kubernetes that provides declarative updates to applications. A deployment allows you to describe an application’s life cycle, such as which images to use for the app, the number of pods there should be, and the way in which they should be updated

How to create a pod in Kubernetes

You can use katakonda playground to practise along . The first step is to launch the kubernetes cluster, inspect the cluster by inspecting kubectl get nodes in the command line . If we are to create a pod called techdirectarchive using busybox image we would run the command

kubectl run techdirectarchive  --image=busybox  --restart=Never
techdirectarchive_pod

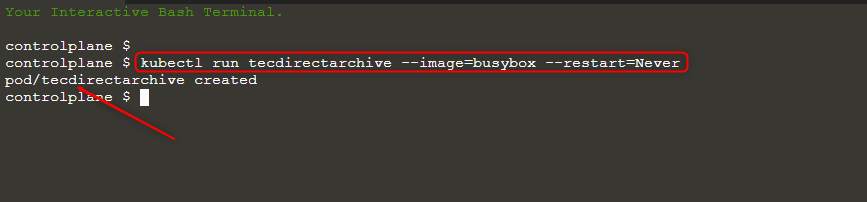

fig 1a how to create a pod

using restart =Never differentiates your pod from a deployment because it tells Kubernetes to create a single pod instead of a deployment

What is a Static Pod?

As we already know there are pods that are managed by the control plane such as your deployments, replica set but in this case, static pods are pods the kubelet have total control over. And this is very crucial for our application because what happens if a static pod node suddenly goes off and for some weird reason our control plane goes off as well?. Well, you guessed right, the static pod will take over by restarting that node without any intervention from the control plane. It does this by creating a direct copy and mirroring it on the Kubernetes Api Server for those pods that had such incidence.

Challenge demo
The  demos are geared towards the Certified Kubernetes Administrator Examination
- This is taken from the exam guide and there is a certain level of guarantee that you will meet this in the examination.

Demo 1: Create a static pod on node01 called static-nginx with image nginx and make sure it is recreated and started automatically in case any failure occurs. Inspect the pod by writing the command below to list all available nodes

kubectl get nodes
kubectl-get-nodes-1

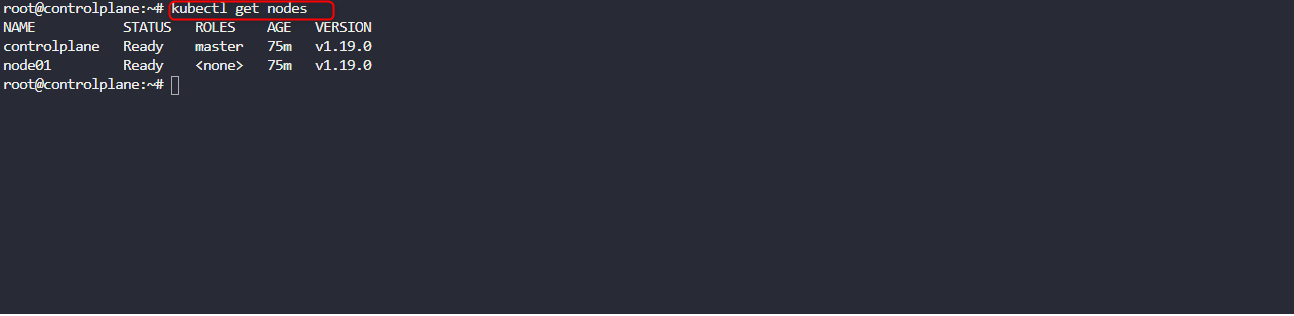

fig1b. pod inspection

ssh into the required node which is node01 by writing the command below

ssh node01
sshnode01.

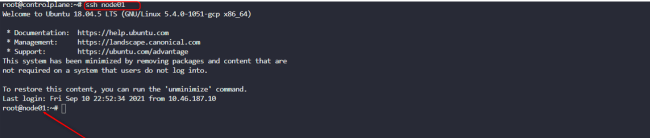

fig 2 ssh into the node

Remember when working with static pods we are mostly dealing with resources that are managed by kubelet so it will make a lot of sense to locate the config file for file kubelet . We achieve this by using the command below

ps aux | grep kubelet

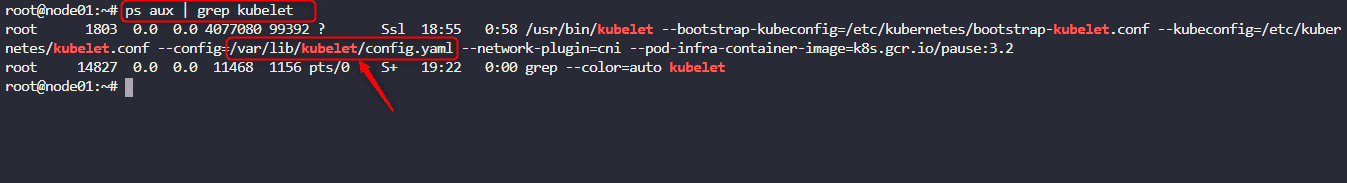

psaux
fig 3 locate the config file

copy the /var/lib/kubelet/config.yaml file that is shown as shown in the image above. In the next step use the cat /var/lib/kublet/config.yaml | grep staticPod as shown below

catvarlib
fig 5 locating the path where the pod will be placed

as you might have already known the cat command can be used to look into the content of a file but in this case, it brought out the path of the file as shown in fig4 with the path as staticPodPath: /etc/kubernetes/manifest

The next step would be to cd into the path cd into the path

cd-into
fig 6 cd into the path

And do an ls . If it’s empty which it most likely would, then we have to create a pod with the usual pod creation commands using the vi editor, name your file and create the pod declaratively.

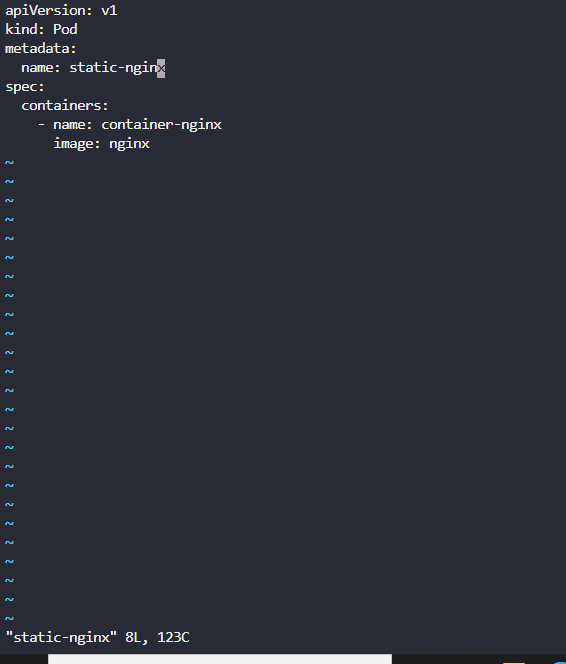

pod-definition-file
fig 7 pod-definition file

Save the file the usual way you would save a vi document(:wq) and If you run an ls again you will see that you have a file. Next thing is to exit the node and return to the main cluster(control plane)by pressing Ctrl D.

When you run kubectl get pod in the control plane, you will see that the name of the pod gets prefixed with the name of the node01 where we earlier created a static pod declaratively

success
fig 8. pod created

There are scenarios where the path that we are to place the static pod is given directly to us, in that case, we will skip all the steps above and just cd into the path, use the vi editor name the pod, and declaratively create the pod. but the example we worked on is the most difficult case you will ever encounter

The beauty of this is that we didn’t run kubectl apply -f pod <name> against the name of the static pod as we would normally do when creating pods. This was created automatically and if anything happens and it by any chance gets destroyed. It gets created again automatically. The ability to be recreated and started automatically in case any failure occurs is a unique feature of static pods and as such we do not need to take any further steps as we have met the requirements.

Note: Our static pod is up and running as shown in the image below.

Refreshers :
How do I inspect the number of nodes/pods in the cluster kubectl get pods or kubectl get nodes
How do I get started with creating my static pod? you need to locate the file where kubelet is saved with the steps:

  1. ssh into the required node
  2. grep for kubelet so as to get the file – if the path is given skip to step 4
  3. use the cat command and file where kubelet is located to grep for staticPod
  4. cd into the static pod path and create a vi document with the desired name of the pod
  5. use declarative approach to create the pod using the given parameters and save the file
  6. use ctlr d to log out of the node and return to the control plane
  7. you can use kubectl get pod to inspect and wait for the see the result of the static pod you just created.

Demo 2: What is ETCD

ETCD is a distributed key – value store that is secure, fast and reliable . The formation stored in etcd is usually in the format key=valueThe first three words ETC are taken from linux ; in linux you might have come across /etc directory, which is where all all configuration files are stored . D stands for distribution. K8s objects like deployments are there so that we are able to make sure our desired states are matched with actual states, since this is very critical we would then need a place where state information is stored reliably. Backup and restores in case any disasters occur are only possible with the help of ETCD. So, knowing how to use ETCD to do Backup and Restore as a Kubernetes adminstrator is important and this skill is tested in CKA examination as well and it is one of the questions with a high mark.

What does ETCD Store

Etcd stores information about the cluster like nodes, pods, config, secrets, roles, account, bindings and others. One thing to note is that every bit of information we interact with as we use the command line tool Kubelet is taken from the ETCD datastore. The service from etcd listens on port 2379

Demo Challenge

Do a backup of the etcd server

The first thing to do is to check the version of etcdctl and also the kube-api server

version-1
fig 9 etcdctl version

At this point we want to locate etcd and where it’s located. So to make life easier, we would check the default namespace where kubernetes would automatically place objects it creates which is kube-sytem

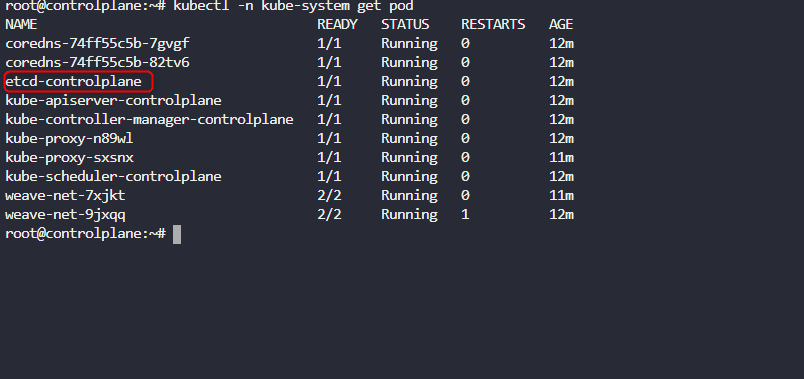

etcd-controlplane
fig 10 etcd-controlplane in kube-system namespace

If you remember from our demo on static pod, a static pod would take the name of the pod with a hyphen and the name of the place where it is placed. So, as we can see, all the pods in the kube-sytem namespace are static pods.

Now that we know where etcd is located, we need certain information to be able to carry out the backup succesfully and we can do this by running

kubectl -n kube-system describe pod etcd-controlplane

We located it initially in the kube-system namespace that’s why it is right to describe it from there as well. Running the describe command provided us with the following:

   endpoint  =https://10.59.194.12:2379
   cert-file=/etc/kubernetes/pki/etcd/server.crt
   key-file=/etc/kubernetes/pki/etcd/server.key
   trusted-ca-file=/etc/kubernetes/pki/etcd/ca.crt

They can be seen from the image

etcdsnapshot-1
fig 11 cert&key files

To proceed with the backup, we need to check kuberntes documentation and copy the command from there ( this is allowed even in the examination) so, you do not need to memorise the command for performing etcd backup. We just need to replace the endpoint, cacert, cert-file and key-file from the result we got when we ran the describe command as seen in fig 11 above into the snapshot save command that is shown in black in below that was copied from the documentation . The solution with fully inserted keys and certs are shown all back solution below, we are assuming that we are saving the backup to a location called /opt/etcd-backup.db

ETCDCTL_API=3 etcdctl --endpoints=https://127.0.0.1:2379 \
  --cacert=<trusted-ca-file> --cert=<cert-file> --key=<key-file> \
  snapshot save <backup-file-location>



ETCDCTL_API=3 etcdctl --endpoints=https://127.0.0.1:2379 \
  --cacert=/etc/kubernetes/pki/etcd/ca.crt --cert=/etc/kubernetes/pki/etcd/server.crt --key=/etc/kubernetes/pki/etcd/server.key \
  snapshot save /opt/etcd-backup.db
snapshotsaved
fig 12 backup saved

As we can see from fig 12 above the backup was successful.

You might come across a scenario where the endpoint, cacert, cert-file and key-file are already provided for you. In that case, just check the kubernetes documentation and copy the command and insert it appropriately.

Demo 3: Upgrading a Kubernetes cluster

Ability to upgrade a Kubernetes cluster is a handy skill that you should have in your cloud-native skill tool kit regardless of whether you are preparing for CKA or not

upgrade the cluster from 1.19.0 t0 1.20.0 drain both nodes(master & worker nodes) and make them available after upgrade

firstly we concentrate on the master node . We need to drain it before we start the upgrade using the command

kubectl drain controlplane --ignore-daemonsets
2021-09-14_20h29_20
fig13. draining the controlplane

next run

apt update

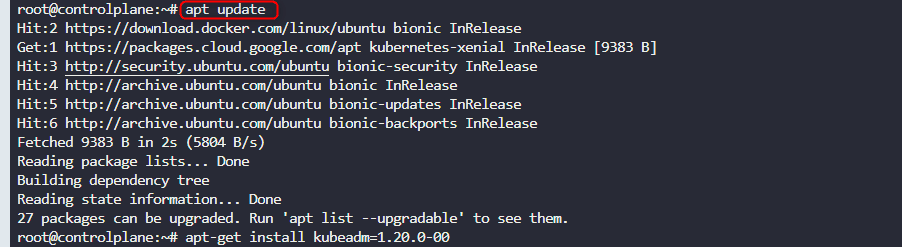

apt-update
fig14 apt update/controlplane
apt-get install kubeadm=1.20.0-00

Next run

apt-install

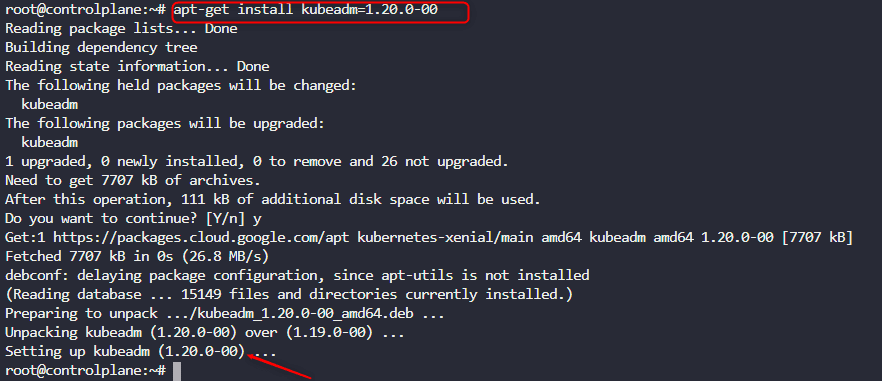

fig15 install kubeadm/controlplane

next run

kubeadm upgrade apply  v1.20.0
upgrade-apply

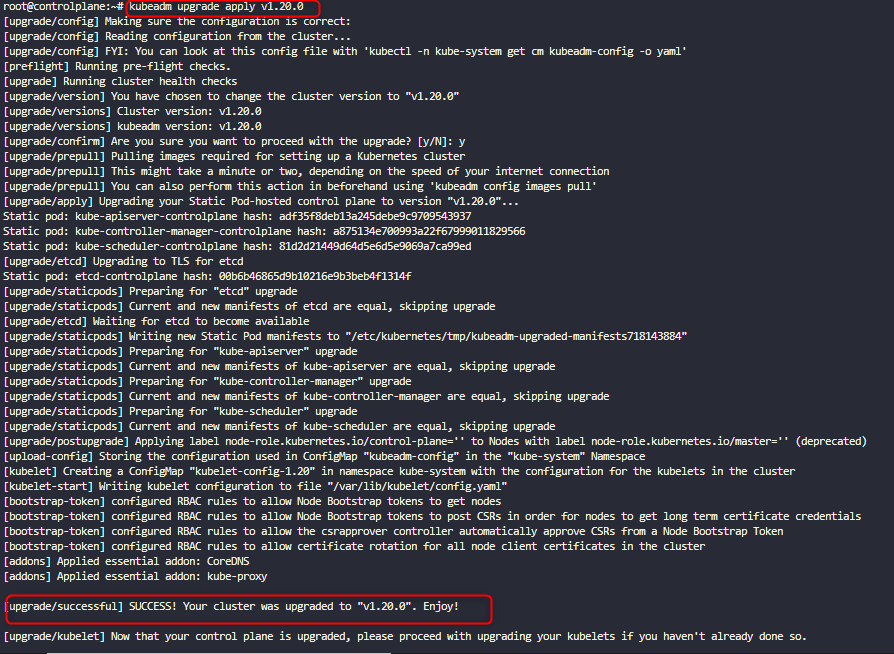

fig 16 kudeadm installed/controlplane

Next we need to upgrade kubelet

apt-get install kubelet=1.20.0-00
kubelet-1
fig 17 kubelet installed/controlplane

If we pay close attention to what the output of the console is telling us, we should already know that we need to restart the system before kubelet can run as indicated by the red arrow in the image above

systemctl restart kubelet

Next step is to undo the drain command we ran at the beginning of the process that evicted all pods in the node

kubectl uncordon controlplane

if we inspect the node now we will see that the controlplane is not disabled anymore

uncordon

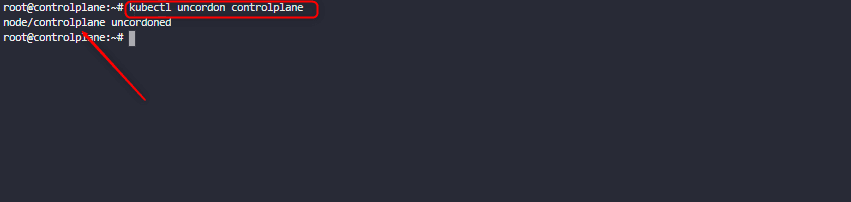

fig 18 uncordon the controlplane

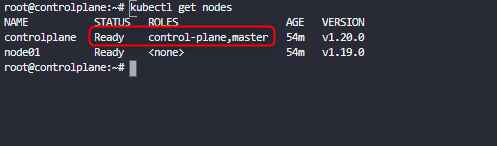

kctl-get-nodes
fig 19 controlplane ready

We have fulfilled the requirements for the controlplane now we need to do same for the worked node

kubectl drain node01
drain-node01

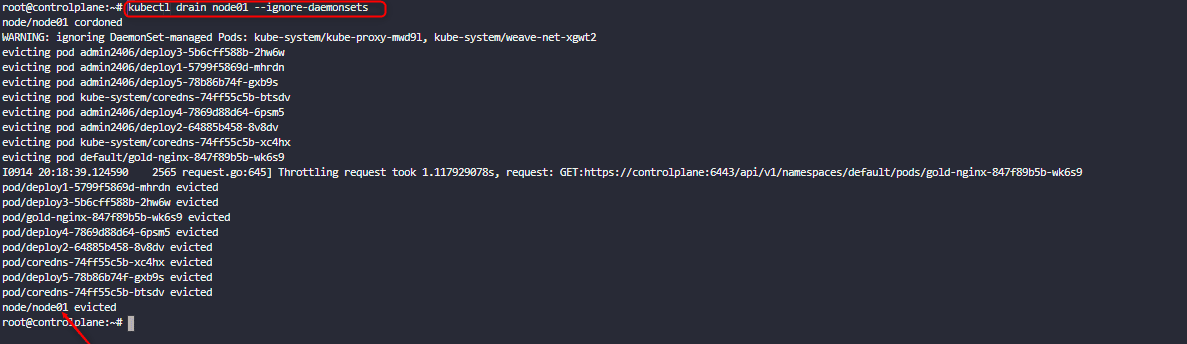

fig 20 drain node01
if we inspect the pod with kubectl get node , we will see that the node has been disabled for scheduling
kubectl-get-node

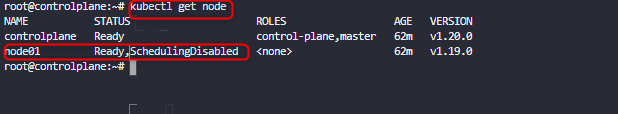

fig 21 node01 disabled
We need to ssh into node01 before we start the upgrade
sshnode01-1

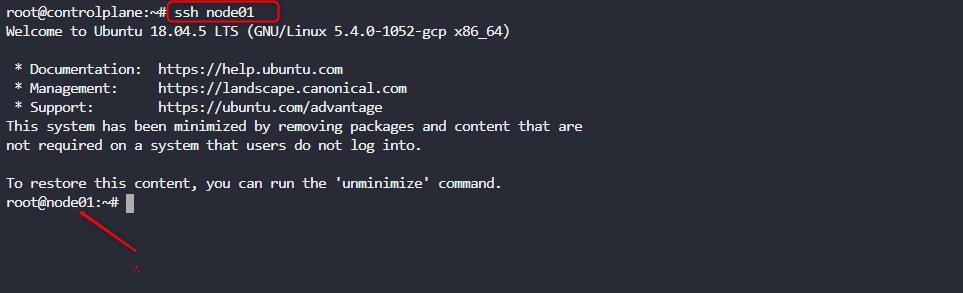

fig 22 ssh/node01
apt update
aptupdatenode01-1
fig 23 apt update/node01
install kubeadm=1.20.0-00
node01-installkubeadm
fig 24 setting up kubeadm/node01
kubeadm upgrade node

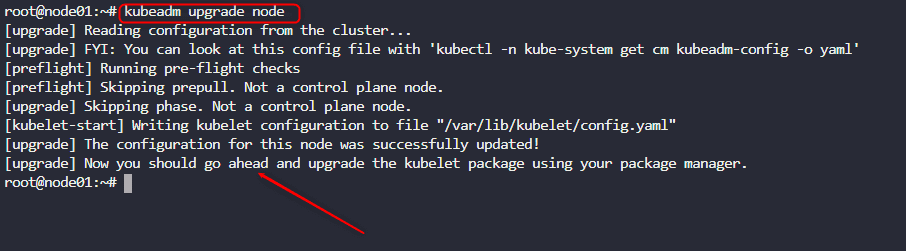

kubeadm-upgrade-node
fig 25 kubeadm upgrade/node01
apt install kubelet=1.20.0-00

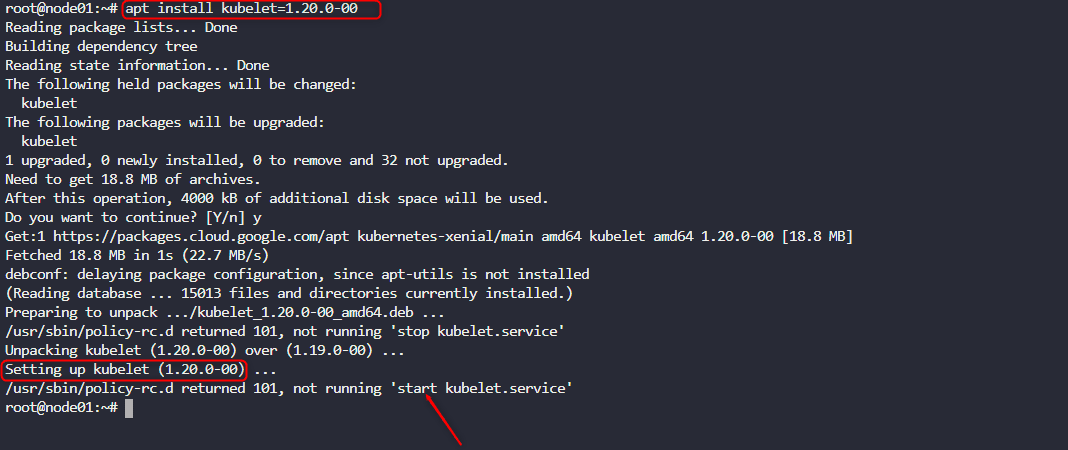

kubeletnode01
fig 26 kubelet /node01
kubelet is set up but from the arrow shown in fig 26 we have been told to restart kubelet.service. This can be done by runing systemctl restart kubelet
final-1
fig 26 checking the status

next we come out of the worker node and stay in the controlplane using CTRL D on our keyboard. if we inspect the nodes using kubectl get nodes, we will see that both the control plane and worker node are having upraded version of 1.20.0 but the worked node is still disabled . So we need to uncordon the worker node

kubectl uncordon node01

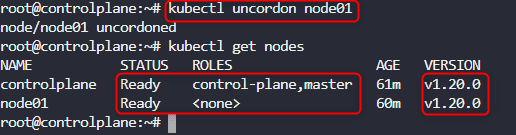

done
fig 27 requirements met

Summary

static pods are important because they make sure that our application is fault tolerant as they can never at any point in time be killed, once they are killed, they get automatically recreated without any intervention from the control plane. First point of when dealing with a static pod is to find the path where they are placed.

ETCD is the default storage solution in kubernetes and the data in it is stored in the format key=value. To do a backup of our cluster we need to insert the endpoint, cacert, cert-file and key-file and the backup location into the snapshot save command that can be gotten from the kubernetes documentation

Ability to uprade a kubernetes cluster is an invaluable skill that every administrator should have under their skill-tool kit. To uprade, you need to drain the individual nodes, install kubeadm to the required version, install kubeadm and uncordon the required node. The process must be done for the master and also the worker node.

* If this guide helps you to become better at kubernetes and cka  and you would  want us to work on more demos please leave us your feedback and comments in the comments section.
