The Microsoft Deployment Toolkit (MDT) is for Windows operating system deployment. It is a free tool for automating Windows and Windows Server operating system deployment, leveraging the Windows Assessment and Deployment Kit (ADK) for Windows 10. In this article, I will show you how to copy Deployment Share between Servers without using linked Deployment Shares. Please see how to perform Attack Surface Reduction Configuration with Microsoft Defender, and the differences between Private and Public networks in Windows to VPN?
Note: MDT performs deployments using the Lite Touch Installation (LTI), Zero Touch Installation (ZTI), and User-Driven Installation (UDI) deployment methods. But MDT uses the LTI deployments only. While ZTI and UDI deployments are performed using MDT with Microsoft System Center Configuration Manager.
Deployment shares
A deployment share is essentially a folder on the server that is shared and contains all the setup files and scripts needed for the deployment solution.
Please learn how Associate SSH Public key with Azure Linux VM, How to create an AMI using AWS console, How to install ENA Driver on Amazon EC2 Windows instance, how to copy and paste between a host machine and VirtualBox VM, and how to configure WatchGuard WebCenter
Why copy Deployment Share without using the Linked Deployment Share?
Copying a deployment share between servers without using the “Linked deployment shares can be necessary for certain scenarios where linked deployment shares are not desirable. Here are a few reasons why you might choose to copy a deployment share instead:
- Redundancy and Backup: Having a copy of the deployment share on another server provides redundancy and serves as a backup. If the original server fails or experiences issues, you can switch to the copied deployment share to ensure continuous operation.
- Independent Configuration: Copying a deployment share allows you to maintain an independent configuration on the destination server. This can be useful if you want to have different settings, customizations, or modifications on the target server
- Isolation and Security: Copying the deployment share can isolate the deployment process and content from other servers or networks. This enhances security by keeping the MDT server contained within a specific server or network segment.
- Geographical Distribution: If you have multiple servers distributed across different locations, copying the deployment share can improve performance and reduce network latency. Each server can serve the deployment content locally, eliminating the need for content retrieval over the network.
Most importantly, some files may not be copied (overwritten) if the folder in the target deployment share isn’t present. Or when it contains similar files.
Therefore, I will recommend using a new deployment share when performing a synchronizing of shares. Want to take a look at the MDT Deployment process.
How to link a removable media to a Deployment Share: Replicate Deployment share to a removable device, how to replicate MDT Deployment Share: How to Create a Selection Profile and Link MDT Deployment Shares, and how to fix Administrative Shares issues: How to create and access a hidden share folder on Windows devices.
Create New Deployment Shares on the Destination (New) Server
Right-click on the deployment share to create a new deployment share. I have pre-created a folder already with my desired deployment name. So I will browse to this share during creation.
Ensure all needed information is populated as I will not be showing all the steps. Otherwise, refer to ADK|WinPE|MDT: Deploy Windows with WDS for more detailed information.

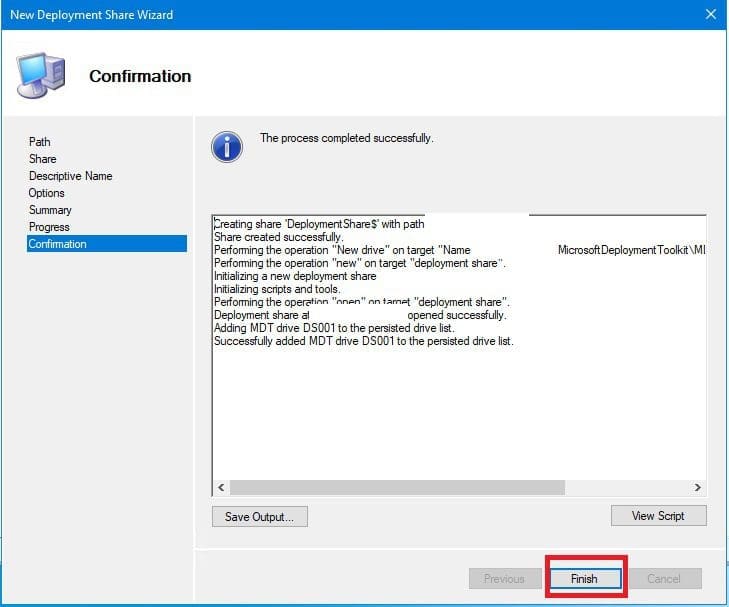

As you can see below, the share has been created successfully.
Connect to a different (Target) MDT Server
Note: The connection is bidirectional and does not matter the server you are connecting to. This means, you can connect to the source or target and get the desired behaviour.
To do this, connect to the MDT/WDS Server. Launch the Microsoft Deployment Toolkit. This will open the Deployment WorkBench.

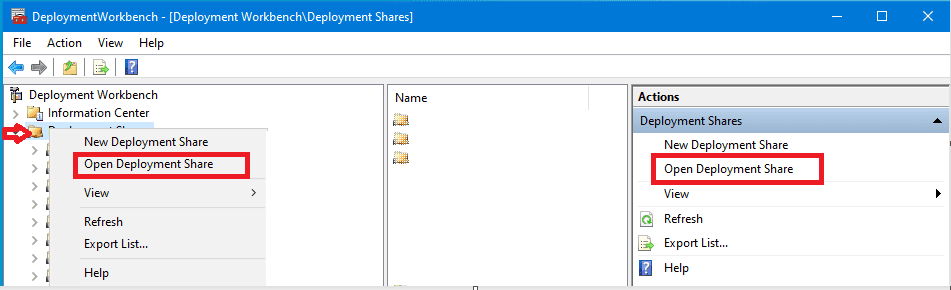

Right-click on the Root Deployment Share. Or click on the Root Deployment Share and on the Action pane, select Open Deployment Share.

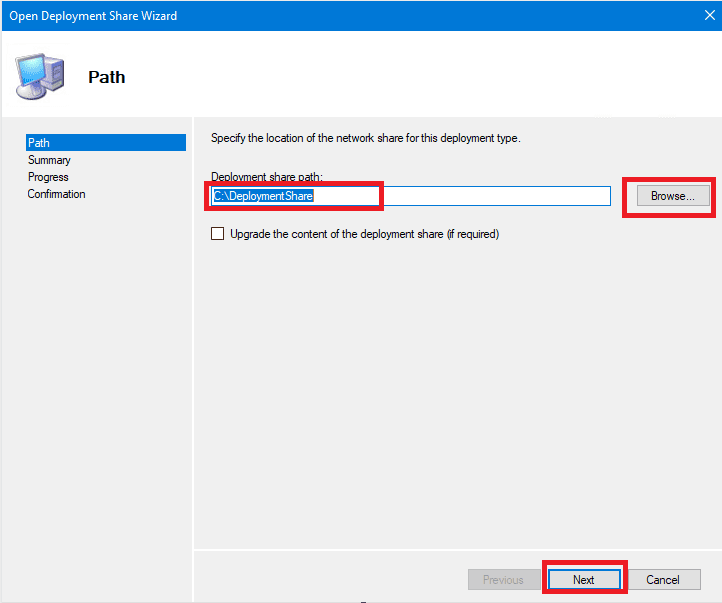

Enter the Deployment Share name you want to connect to. If you wish to use a UNC path, it should be like the one below. hen click on Next to continue.
\\MyProductionserver\DeplyonmentshareWS2019$
If you do not know how to get the remote UNC path, see the last section of this blogpost.

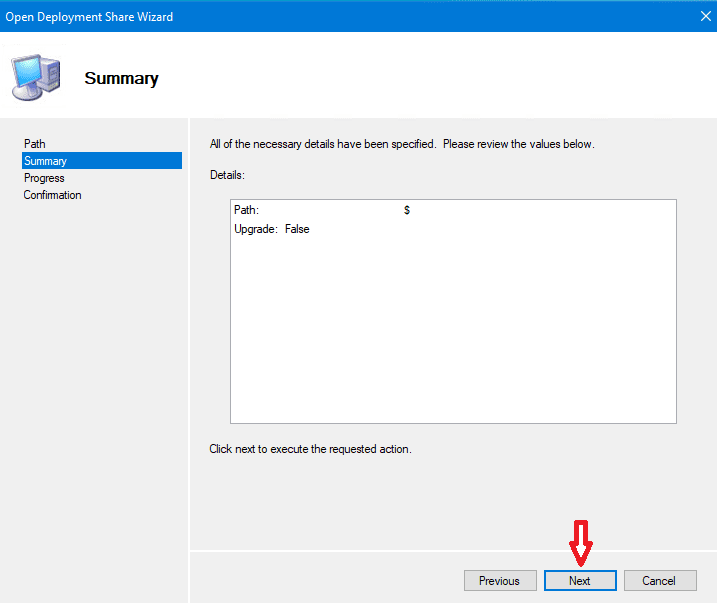

On the summary page, please confirm the details and click on Next to continue.

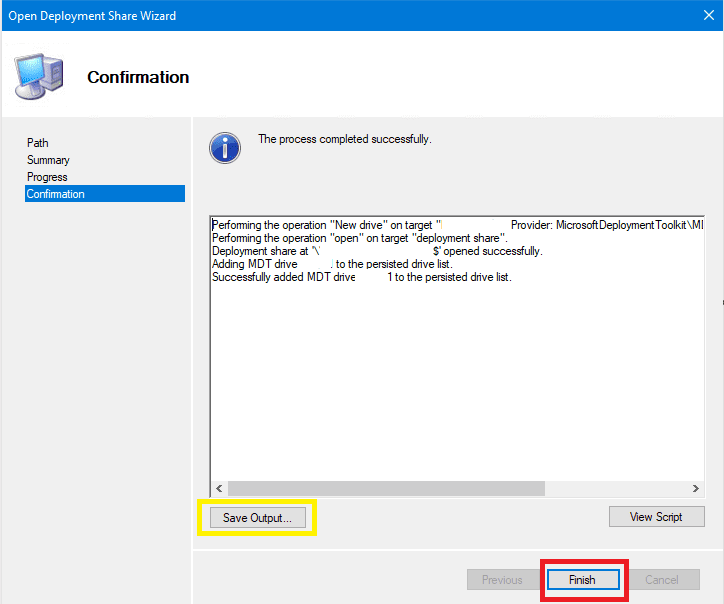

On the confirmation page, click on Finish to complete.

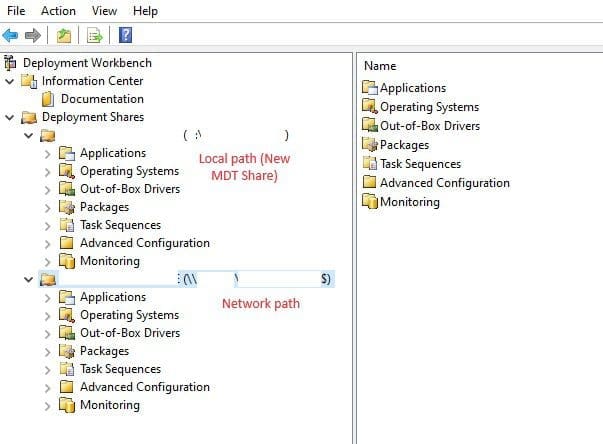

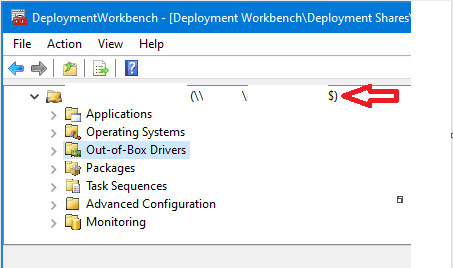

The connected Deployment Share is associated with the UNC path as shown below. This will help you in spotting the opened deployment Share.
Copy between deployment share. Expend the remote deployment share and copy the content to the local deployment share.
Here are some related articles: How to remove an MDT Deployment Share, how o fix Error Code: 0x80070035: MDT unable to access the Log share, the Network Path was not found, learn about the differences between MDT and WDS, how to fix MDT Warning: Unable to set the working directory, the application returned an unexpected code 2.
Copy and Paste Content Between MDT Share
Note: You should copy contents over MDT and not the File Server.

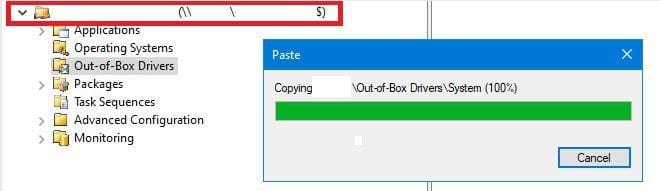

To copy contents, locate the target deployment share and copy the application, OS, or Drivers as the case may be to the source deployment share. The image below shows the drivers copying to the source folder.

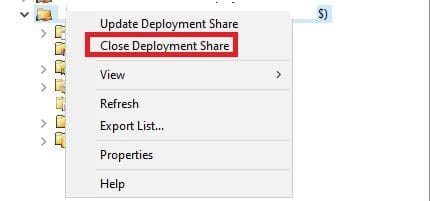

Click on Close Deployment Share as shown below when done.
Note: Update the Deployment Share to reflect the configuration settings on the source server to reflect the new deployment share location. This step also involves modifying the paths, and task sequences to function correctly.
Please see Upgrading Azure AD Connect to Microsoft Entra Connect Sync, PCI Driver Error: Connection to Deployment Share could not be made, and Steps to Fix the “Invalid OS GUID” Error in MDT.
Copy Any other share (folders) Needed over to the New server
This step is optional as you may wish to copy all needed scripts, and some images over to the new server. browser over to the server {\\servername\G$) and copy the files over to the destination partition as you wish.
Informational Only: Get UNC Path
To get the Remote UNC path of the remote MDT server. Launch the deployment share of the server. The Share you wish to get data from, right-click on it.
As you can see below, it will be listed as shown below.
I hope you found this article useful for how to Copy Deployment Share between Servers without using linked Deployment Shares. Please feel free to leave a comment below.
