In this guide, I will show you how to dockerized an existing web application, put it in the source control, and get it deployed to Azure Kubernetes Service (AKS), and also set up a CI/CD pipeline. We will be looking at the integration between Azure DevOps and GitHub. Click here to learn more about Azure Kubernetes Service. The first thing we will do is to create the Kubernetes Cluster on Azure.

To do so:

  1. Sign in to Azure Portal
  2. Search for Azure Kubernetes Service in the horizontal search bar. See the screenshot below:
Creating-Azure-Kubernetes
Search and create Azure Kubernetes Cluster

3. Click on Kubernetes Services. Select create

Select-the-create-button
Create Azure Kubernetes Cluster

4. Specify the cluster name and other information

Avail-zone-in-AKS
Configure Azure Kubernetes Cluster

In my selection, the name of my cluster is akscluster the region is East US while I selected 3 Availability Zones. Availability Zones is a high-availability offering that allows you to spread the nodes in your node pool across multiple physical locations, protecting your applications from datacenter failures. Learn more about Availability Zones.

Configuration-for-aks-1
Configure Azure Kubernetes Cluster

Next screenshot above shows you the node size which is the size of the virtual machines that will form the nodes in the cluster. This cannot be changed after creating the cluster. The scale method gives you the option of choosing between manual or automatic scaling for your cluster. Autoscaling can help ensure that your cluster is running efficiently with the right number of nodes for the workloads present. Go ahead to choose the Kubernetes version (the version of Kubernetes that should be used for your cluster. You will be able to upgrade this version after creating the cluster) and choose the node count range by setting the minimum and maximum node counts for your node pool. You cannot set a lower minimum than the current node count in this node pool. If you want to set a lower minimum node count, you will need to manually scale down the cluster first.

Note:
Increasing the number beyond the maximum allowed node counts for your subscription will throw an error message of (The maximum node count you have selected is higher than the remaining quota for this subscription. Autoscaling may fail above 10 nodes due to quota restrictions 20 cores remaining).

5. Click on the Create + Review button and review and create your AKS. See the screenshot below:

07.09.2021_12.23.23_REC
Create Azure Kubernetes Cluster

6. Finally, click Create to create your AKS

Having created the AKS on Azure Portal, the next is to start out all the procedures necessary to ensure the successful deployment of Azure DevOps and GitHub Integration for Docker and Kubernetes deployment.

The first to do is to get my code ready in my local system. I will do this by creating a folder called "AksDemoGit" on my Desktop screen. See the screenshot below;

Local-folder
Local Desktop Screen

Next, I will add my code to the folder and open it with Visual Studio Code (VScode). As shown in the screenshot below. Take your time to access the code in Dockerfile and the YAML files.

Add-the-folder-to-the-VScode
Code added to VSCode

The steps below will be applied to get our code pushed to GitHub. The reason why we are pushing our codes to GitHub is because we will be building our CI/CD Pipeline in Azure DevOps this time around with our codes hosted remotely on GitHub. In one of my previous guides, I talked about how you can build CI/CD Pipeline with codes in your local system. In case, you didn’t read it, you can read now how to build your first CI/CD Pipeline in Azure DevOps using ASP.Net Core Application

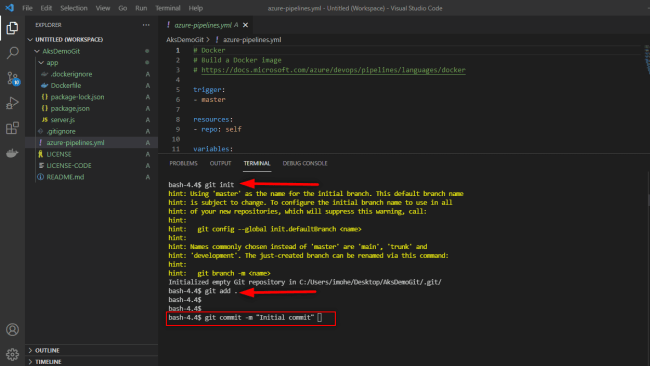

Open a Terminal in your VScode or any of your favourite IDE in the "AksDemoGit" folder directory and run git init to initialize the local repository -> run git add . to add all the files -> commit the files by running git commit -m command followed your commit message. Here I added my commit message as "Initial commit" See the below screenshots for more info!

Git-initialized-interface
Initialized local repo

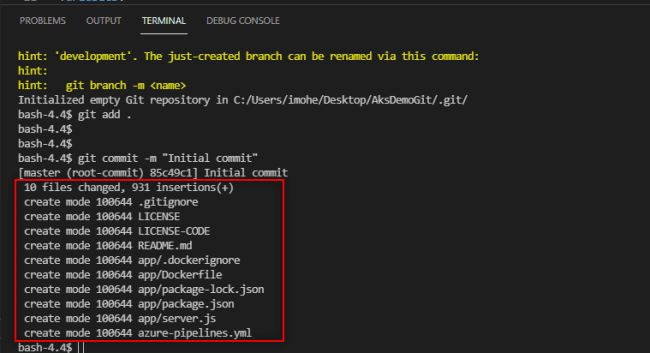

Files-committed
Files committed to GitHub Repository

The next thing to do is to go to Github and create a remote repository. Here, I am using AksDemoGit as the name of my repository. Do this by clicking on the Plus + sign beside your GitHub profile picture and select"New repository" as shown on the screenshots below.

Creating-git-repository
Steps to Create GitHub Repository

Take a look at the below screenshot to see the name name of my repository. Supply yours by choosing what you desired as a repository name and click on "Create repository" to have it created for you.

Supply-the-name-of-your-repository
Create GitHub Repository

Having created our repository, the next thing is to add the remote repository to our local repo using git remote add origin https://github.com/imohweb/AksDemoGit.git. You do this by copying the remote repository URL from your GitHub account. See the screenshot below.

copy-remote-repo
Created GitHub Repository

Run git remote -v to check what you have just done to make
sure you’re on track. Things are all done correctly here that’s it

Remote-V
Checking the commit

Now that you have added the remote repository, run the git remote -v command to check what you have just done to make sure you’re on track. Things are all done correctly here from the above screenshot. That’s it!

The next thing is to push the code to the remote repository. To do that run git push -u origin master. As shown in the below screenshot, our code is successfully pushed to the remote repository. Take time to inspect it.

Successfully-pushed-to-the-master-branch
Code Pushed to master branch on GitHub

Now it’s time to refresh your GitHub Repository to see the codes you just pushed. See the screenshot to see that my codes are right there.

code-in-remote-repo
GitHub Repo with Codes

Now that our codes are seated on GitHub repo, I will go ahead and create a branch by running git checkout -b develop to create a new branch named "develop". Next, set the upstream by running git push --set-upstream origin develop. The screenshot below has more details on this.

After-creating-branch
The develop branch created

We are going to be working off the develop branch for now. I will tell you why when we get to the pipeline stage.

So the next thing we want to do is to create a project in Azure DevOps signing into Azure DevOps

The steps to create Azure DevOps project are simple. Create Azure DevOps Organization first if there is no existing one and then create Azure DevOps Project. To learn more about Azure DevOps Organization and Project see related guide. See the below screenshot to see the name of my project. I still retain the name as AksDemoGit. Supply the name of your project and make it Public or Private. Here I chose Private as an option and then, click Create project.

create-a-project
Azure DevOps Project

Integration between Azure DevOps and GitHub

Next thing is to create Personal Access Token on GitHub and use it to establish connect between Azure DevOps and GitHub. To do so, head to your GitHub account -> Profile Icon-> Settings -> Developer Settings-> Personal Access Token -> Generate Token. The below screenshot explains more.

08.09.2021_02.49.03_REC
Various Steps to create PAT on GitHub

From screenshot below, I have supplied the name of my PAT and gave the maximum permission necessary. Feel free to do the same and click on Generate token when you’re done. Your PAT will be generated for you.

Give-it-maximum-permissions

Step to Create PAT on GitHub

Generate-Token
Generate PAT on GitHub

Next, you will copy out the generated token and go to Azure DevOps project as shown on the screenshot below;

copy-PAT
PAT Created on GitHub

Now head to your Azure Project and create the GitHub connection by following these steps: Click on Project Settings -> GitHub Connection -> Personal Access Token -> Paste the PAT copied from GitHub -> Save. See the below screenshots for more explanations.

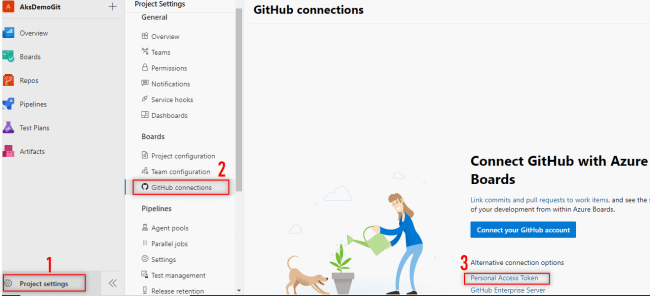

Creating-PAT-on-Azure-DevOps
Creating GitHub Connections

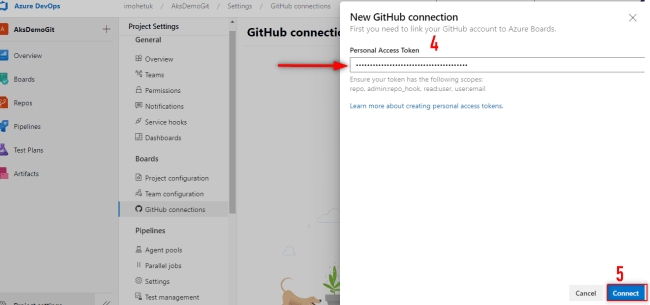

Creating-PAT-on-Azure-DevOps2
Supplied PAT connection Key

After clicking Save, you will be prompted to choose your GitHub repository. Choose exactly the same one you have your code in and click Save as shown in the screenshot below.

Pick-the-GitHub-Repo-and-click-on-save
GitHub Repository

Now we have established a connection between GitHub and Azure DevOps Project. The screenshot below shows that my connection is perfect.

Azure-DevOps-and-GitHub-Connection-established
Established GitHub and Azure DevOps Connection

Create Namespaces and resources on Azure DevOps: Now its time to create namespaces and resources in Azure DevOps Project.

We will be creating the following environment and resources.

  1. Dev – The dev environment is where changes and updates are pushed to other deployment environment
  2. Quality Assurance (QA) – The QA environment is the one where the testing of the code takes place. This environment is owned and managed by the QA team.
  3. Staging – Staging environments are made to test codes, builds, and updates to ensure quality under an environment that’s similar to the production environment before application deployment.
  4. Production (Prod) – This is where the latest versions of software, products, or updates are pushed live to the intended users. Think of it as a final phase of production. This is the environment where the end user can see, experience, and interact with the new product.
Go back to the Azure DevOps Project and click on Pipelines -> Environment -> Create Environment -> Name of the environment(we want to create the dev environment first) ->  Add the description and then select {Kubernetes} because we are going to be deploying to Kubernetes -> Create -> Next. Choose Azure Kubernetes Service as provider, remember we have already created our Kubernetes Cluster on Azure. You will be prompted to sign into the subscription you want to use, update the right subscription and click on "Validate and create"
creating-environment-and-resources2
Dev Environment
Validate-and-create
Dev Environment created

Congrats! You have created your first environment. Now go ahead and repeat the above steps for the remaining environments.

Having created all the environment required, there is one more thing we are going to create but before doing so we have to create Azure Container Registry on Azure Portal. To do so, search for Container registries in the horizontal search bar at the top of the Azure Portal. See the screenshot below;

Create-Container-Registry
Creating Azure Container Registry

Supply all the required information. As you can see from the screenshot below, the name of my Container Registry is aksdemogitacr.

creating-acr
Azure Container Registry

One more thing to create is the Service Connection for Docker. To do so, navigate to the project settings -> Service Connections -> New Service Connection -> Docker registry -> Azure Container Registry -> Select the name of the Azure container registry you just created in Azure -> Supply the name for your Docker Connection, remember to check "Grant access permissions to all pipelines" and click Save. See the screenshots below for more details.

Service-connection2
New Service Connection for Docker
08.09.2021_09.55.07_REC
Service Connection for Docker Registry

You can go to your Azure DevOps Project to check the repo to show that there is no code in there before running the Pipelines. See the below screenshot to see that the repository is empty.

Project-repo
Azure DevOps Repository

The last thing to do to wrap up the whole process is to run our pipelines. To do so, follow the steps below:

  • Click on Pipelines in your Azure DevOps Project
  • Click Create Pipeline
Create-Pipeline
Create Pipeline
  • Select the location where you have your code, that’s GitHub
pipeline
Location for your code

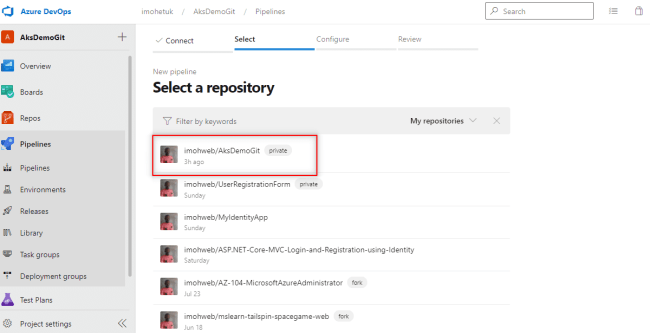

The below screenshot shows the selected GitHub Repo that my Pipeline will run from.

Select-code-location
GitHub Repository

Once the code location has been selected, Azure DevOps will automatically configure the YAML files for your review as shown in the below screenshots. Review the YAML files and click Run when done to get your pipeline running.

Review-your-code-and-click-run
YAML Files

As soon as you click on the run button as shown above in the screenshot, your pipeline will start running automatically across all the environment created above.

In conclusion, in this guide you have learned about how to create Azure Kubernetes, Azure container Registry, set up Personal Access Token (PAT) on GitHub to establish the connection, create deployment environments and run your pipeline across the environments.
