How to install and configure Ubuntu Linux on VirtualBox

How to install and configure Ubuntu Linux on VirtualBox

Oracle VirtualBox is a cross-platform virtualization application. It installs on your existing Intel or AMD-based computers, whether they are running Windows, Mac, and Linux operating systems. VirtualBox is a software virtualization package that you can install on your operating system. VirtualBox terminology, the operating system on which VirtualBox is installed is referred to as the host. The operating system you install and configure Ubuntu Linux on VirtualBox (virtual machine) is called the guest. For how to install Windows Server 2019 on VirtualBox, see the following link. See the following guides on how to perform Post OS Installation configuration of Windows Server 2019 Properties, how to install Windows Server 2016 Operating SystemWindows Server 2019 on a VMware Workstation, and how to install and configure Ubuntu Linux, see the visit link.

To install Ubuntu Server 20.04 on a VirtualBox virtual machine, follow the detailed steps below. These steps ensure VirtualBox is already installed.

Step 1 – Create a Virtual Machine

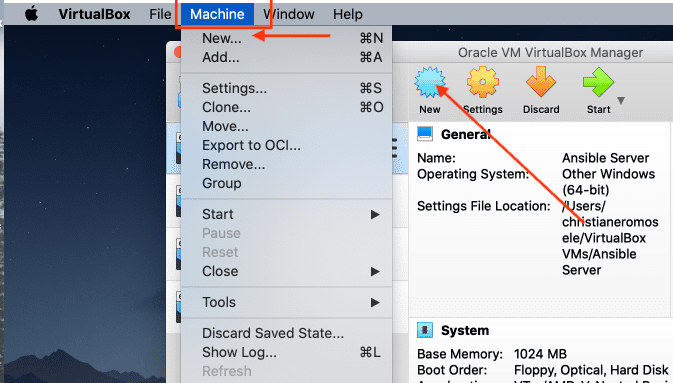

– Launch VirtualBox and click on “New”
Note: On a macOS, you can click on machine and select “New”

Create a new Virtual machine

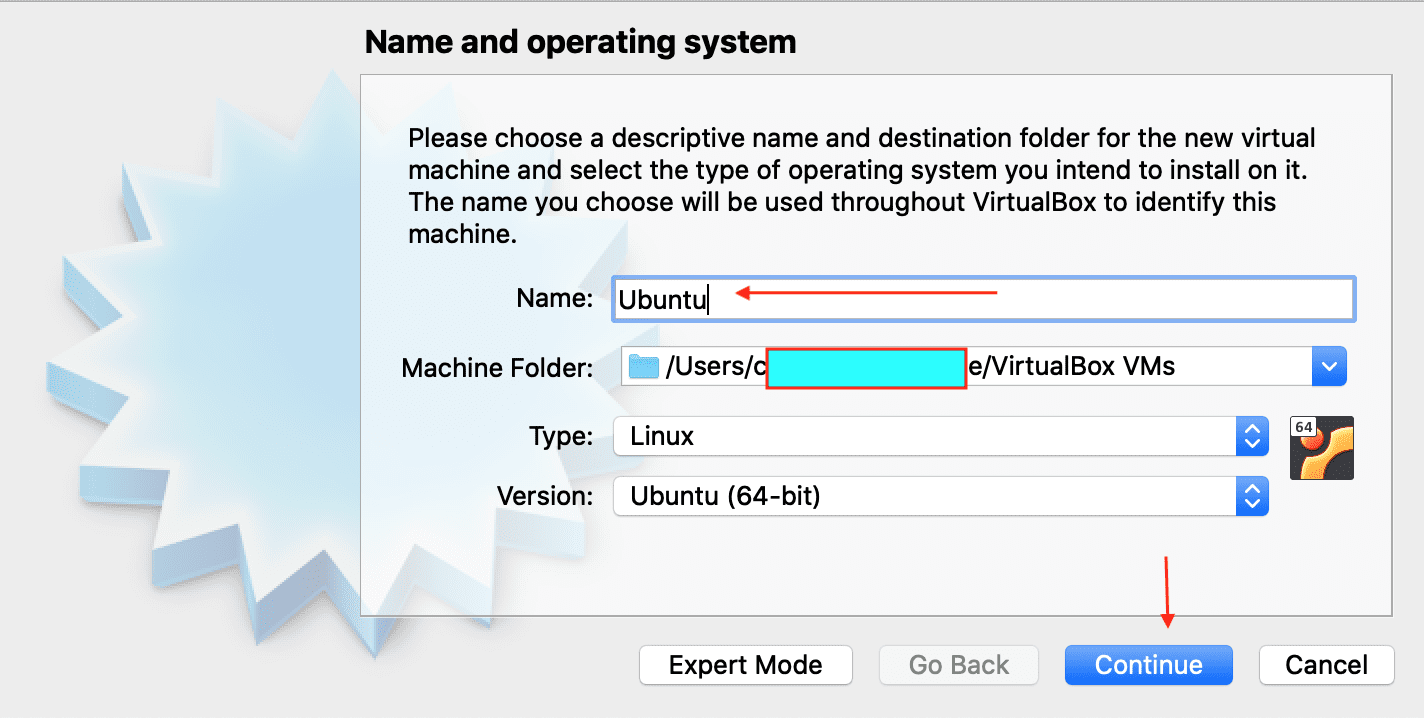

Next, enter a name you wish to save your virtual machine. Enter the desired name for your virtual machine in the “Name” field as shown below.
– Here you can also select a location for your virtual machine.
– OS type “Linux” as shown below and
– The Version of Linux (In my case, it is Ubuntu (64-bit)).

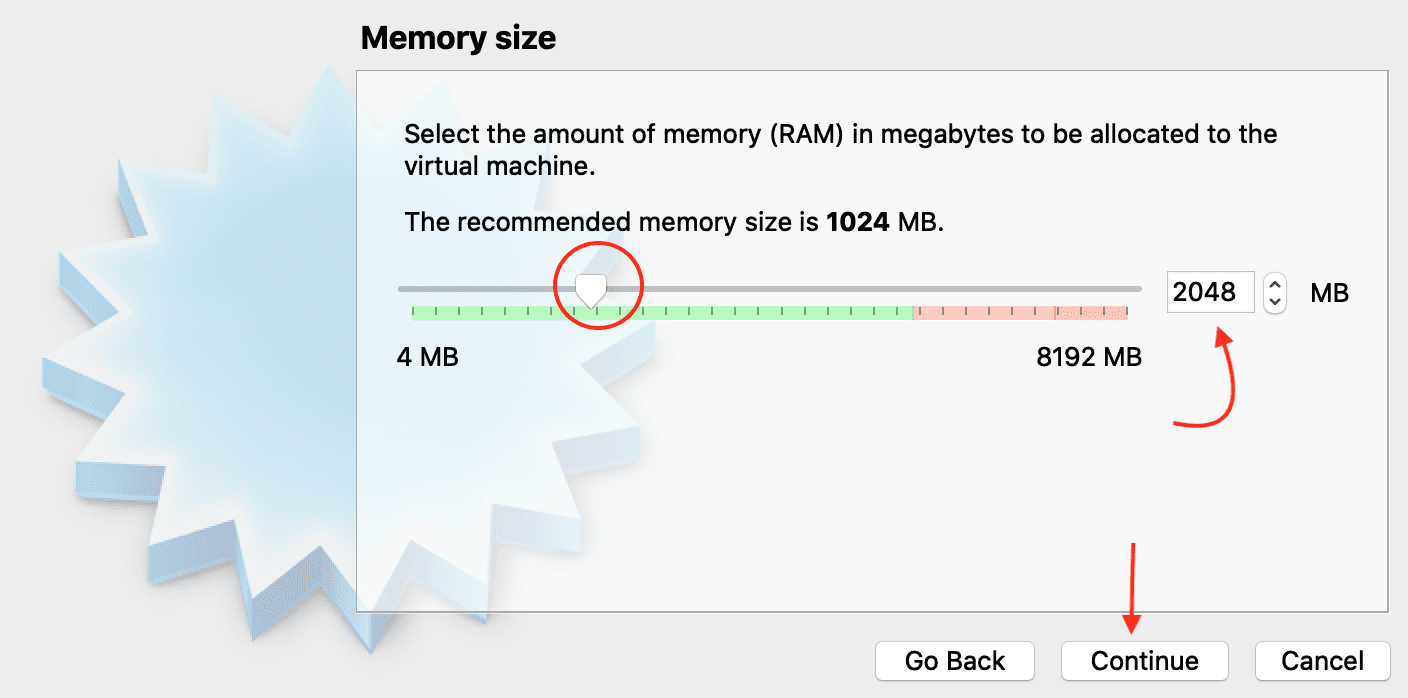

Select an amount of RAM

Assign memory to your virtual machine.
– I will select 2048 MB

Select a RAM size for your virtual machine

You can increate the memory with the slider or by typing the values.

Create your virtual machine’s virtual hard drive

The virtual hard drive is a section of your computer’s hard drive space which will be used to store your virtual machine’s files etc.

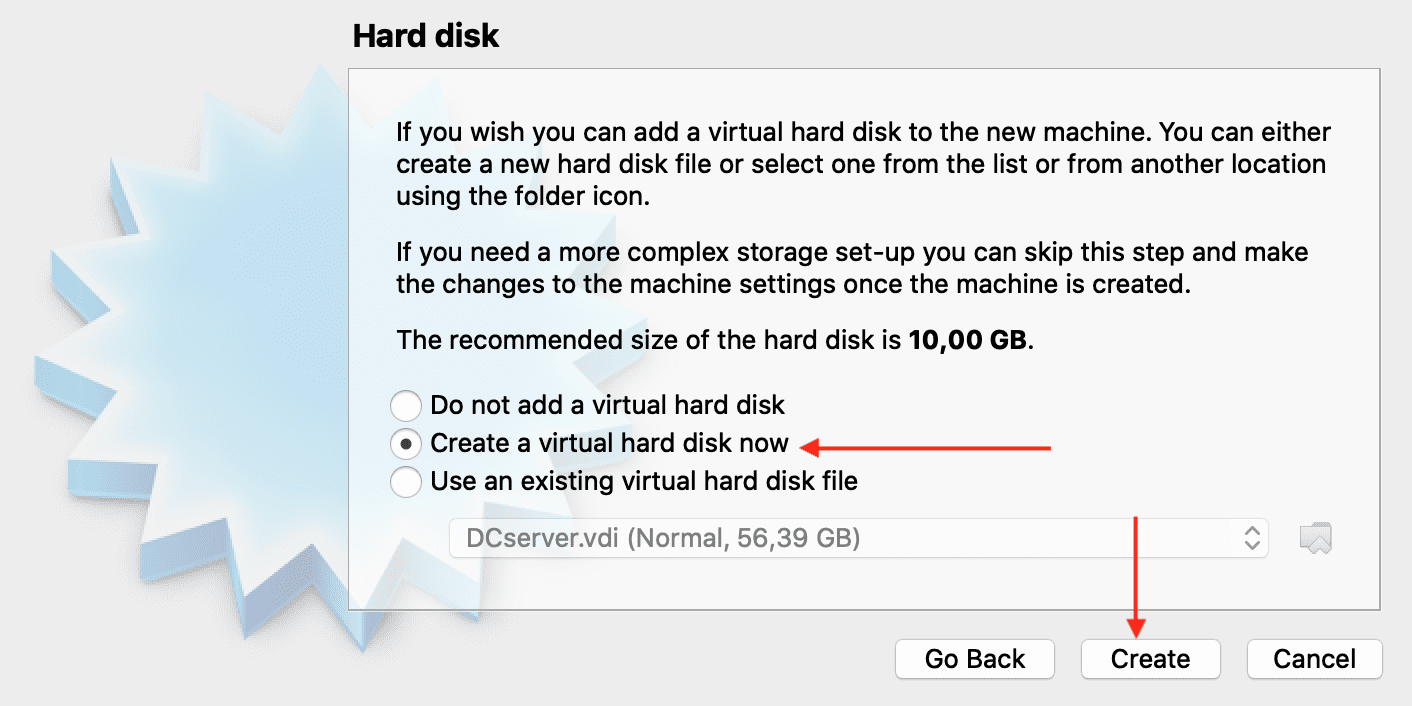

Create a virtual hard disk

This will open the Hard disk type window. I will be selecting VDI (VirtualBox Disk Image) as shown below. For the differences, take a look on how to install VirtualBox and Guest Integration.

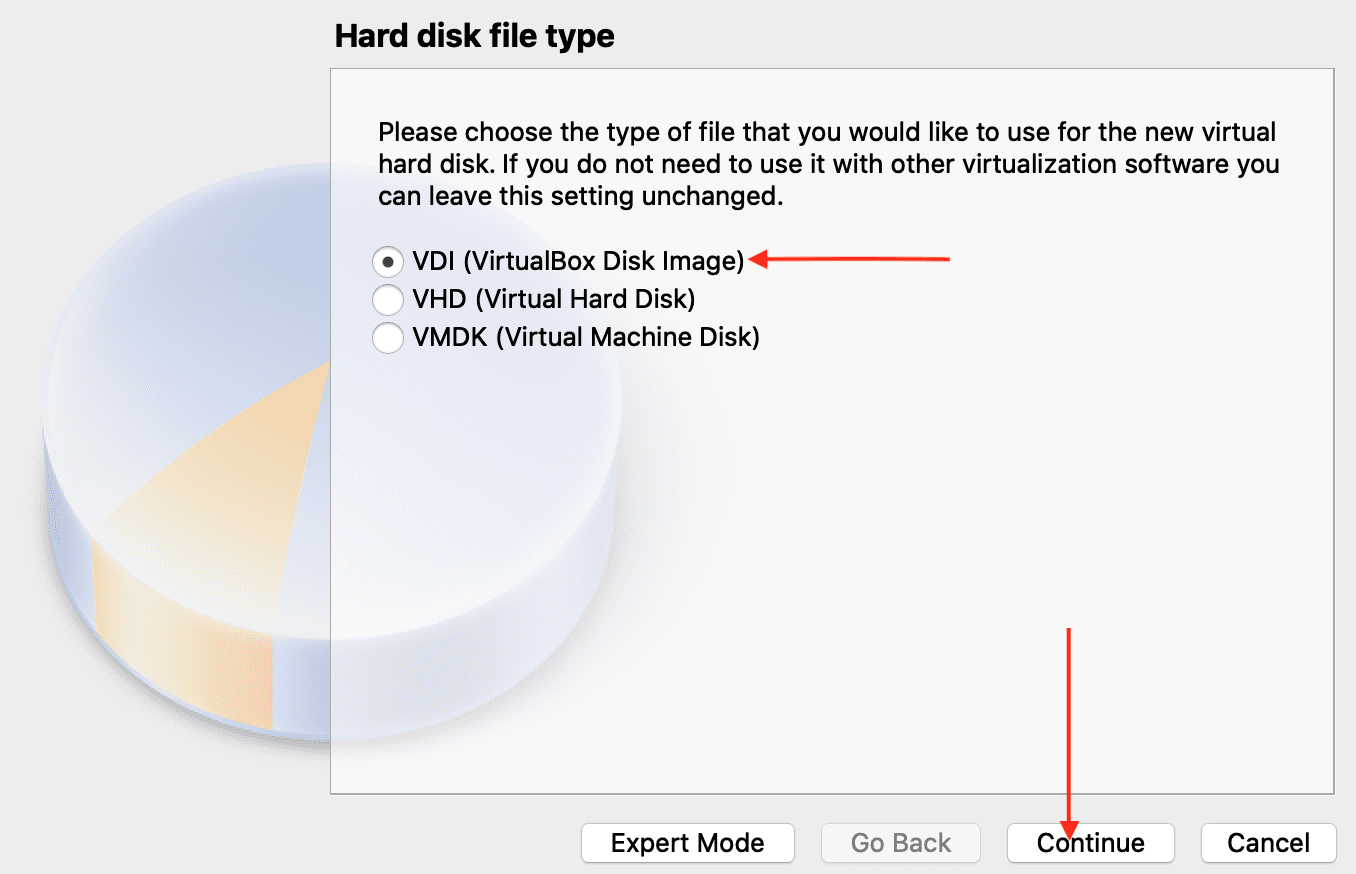

Select virtualBox Disk Image (VDI)

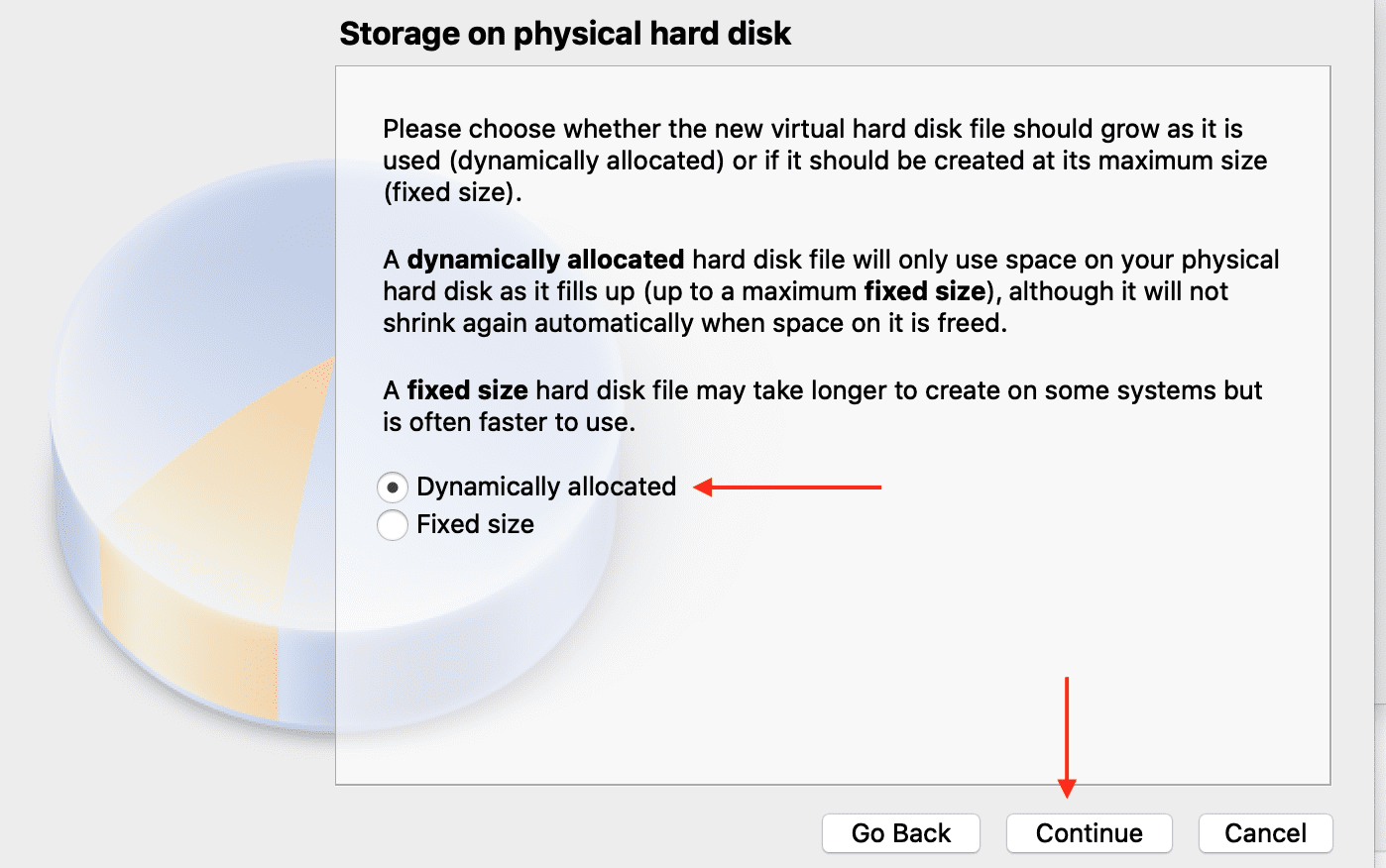

You can choose either the “Dynamically allocated” or the “Fixed size” option for creating the virtual hard disk. I will be choosing the “Dynamically allocated” as shown below. For the difference, Please see the screenshot.

Click on Dynamically Allocated

Enter the desired file location and size of the VDI. You can use the slider or type the size into the field as shown below.
– Click on create and VirtualBox will generate the “Ubuntu” virtual machine.

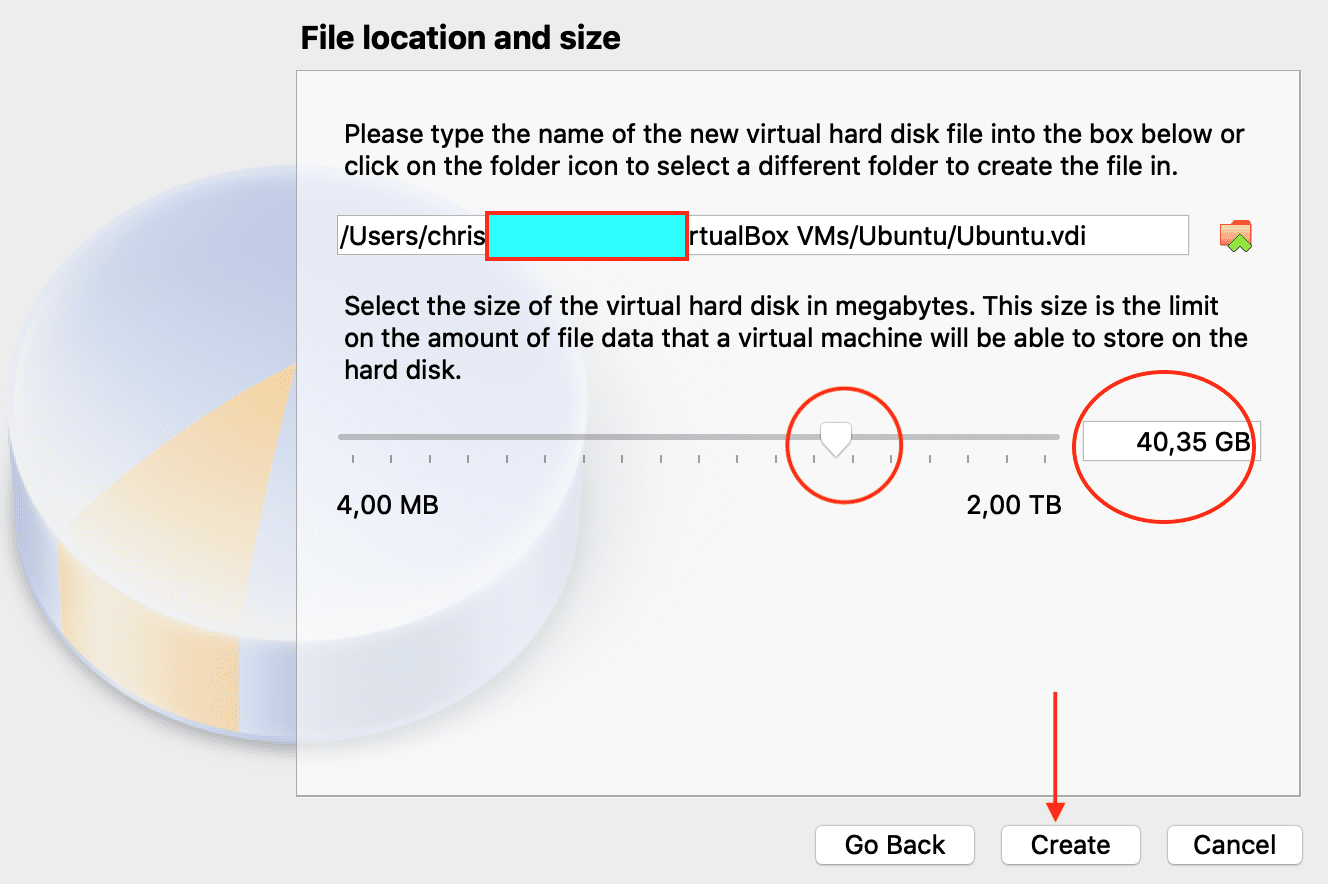

Select Location and size of drive and click on create

Step 2: Install Ubuntu on this VM

Now the virtual machine is created. We are ready to install Ubuntu in this virtual machine. It is time to boot that ISO and install Linux as a virtual operating system.

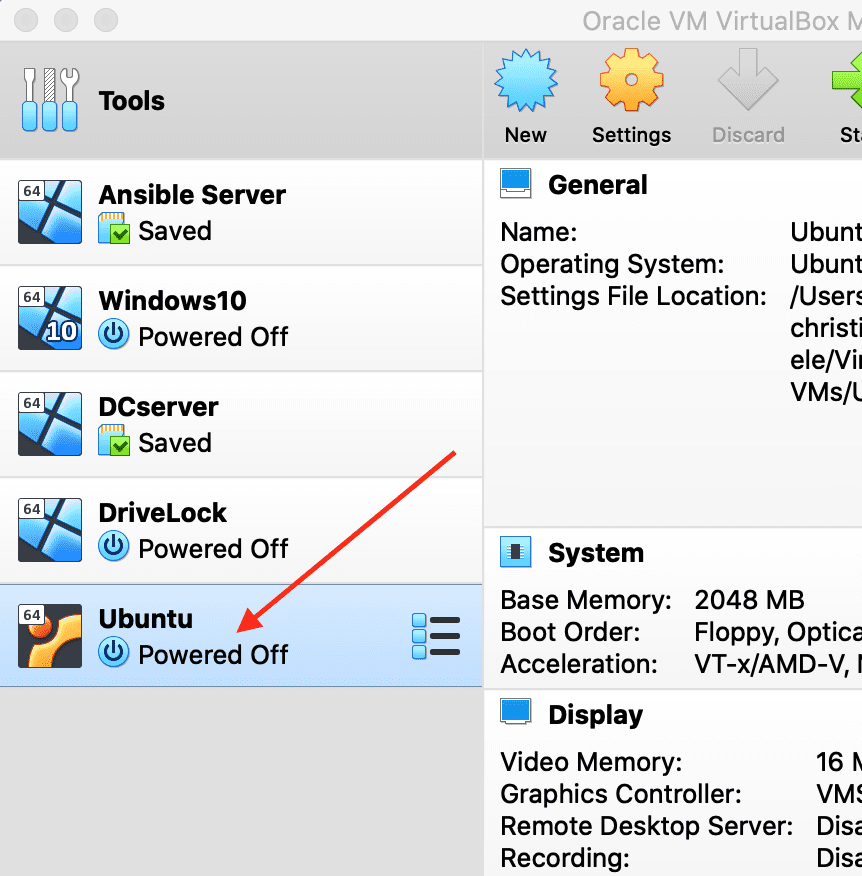

Our Ubuntu virtual machine is turned off

The next steps requires Ubuntu 20.04 to be downloaded, see this link.

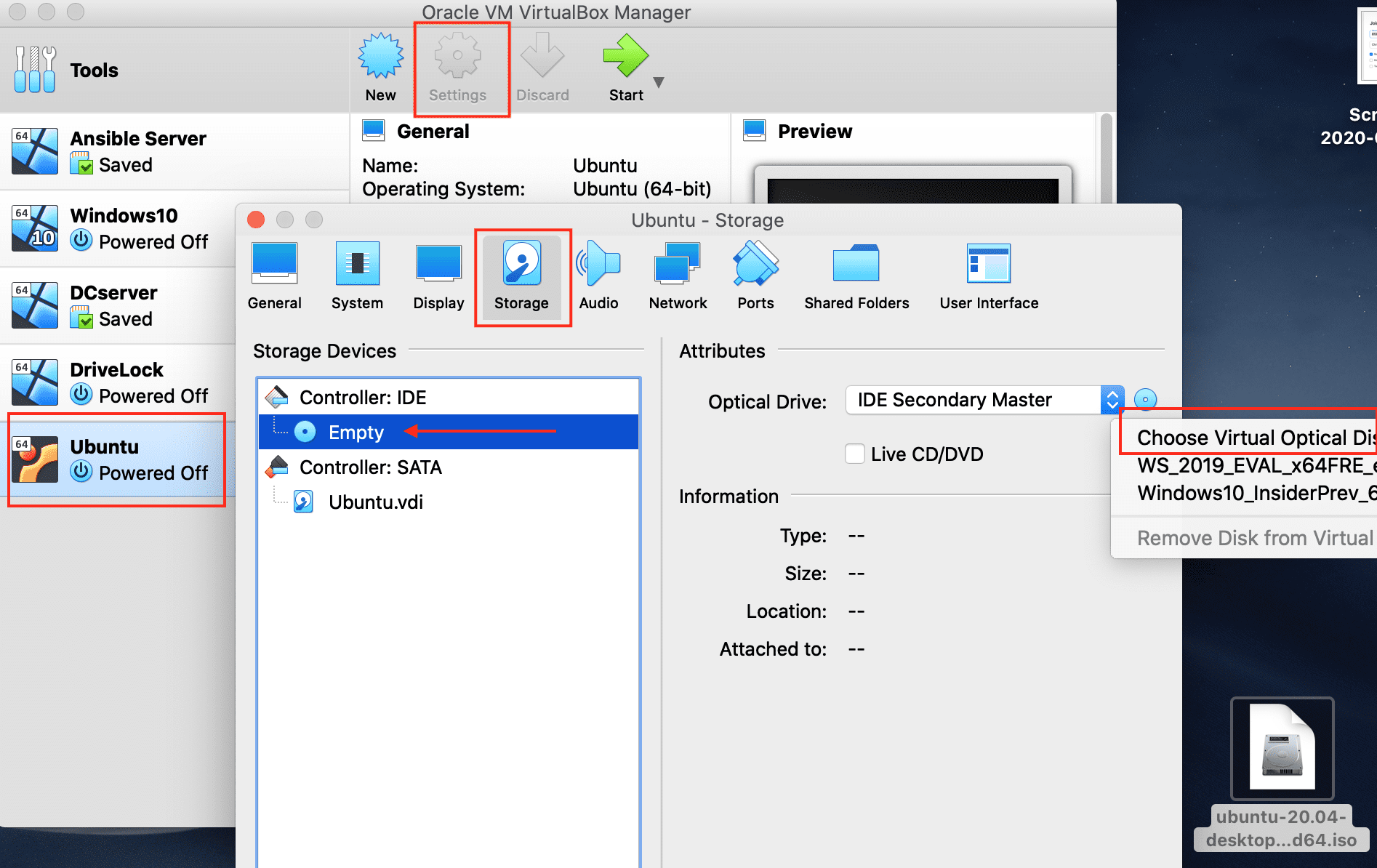

Select your new virtual machine and click the ‘Settings’ button.
– Click on the “Storage” category and
– Select “Empty” under Controller:IDE as shown below.
– Click “CD/DVD” icon on right hand side and
– Select the ubuntu ISO file to mount.

And click ok after selecting the ISO image you downloaded.

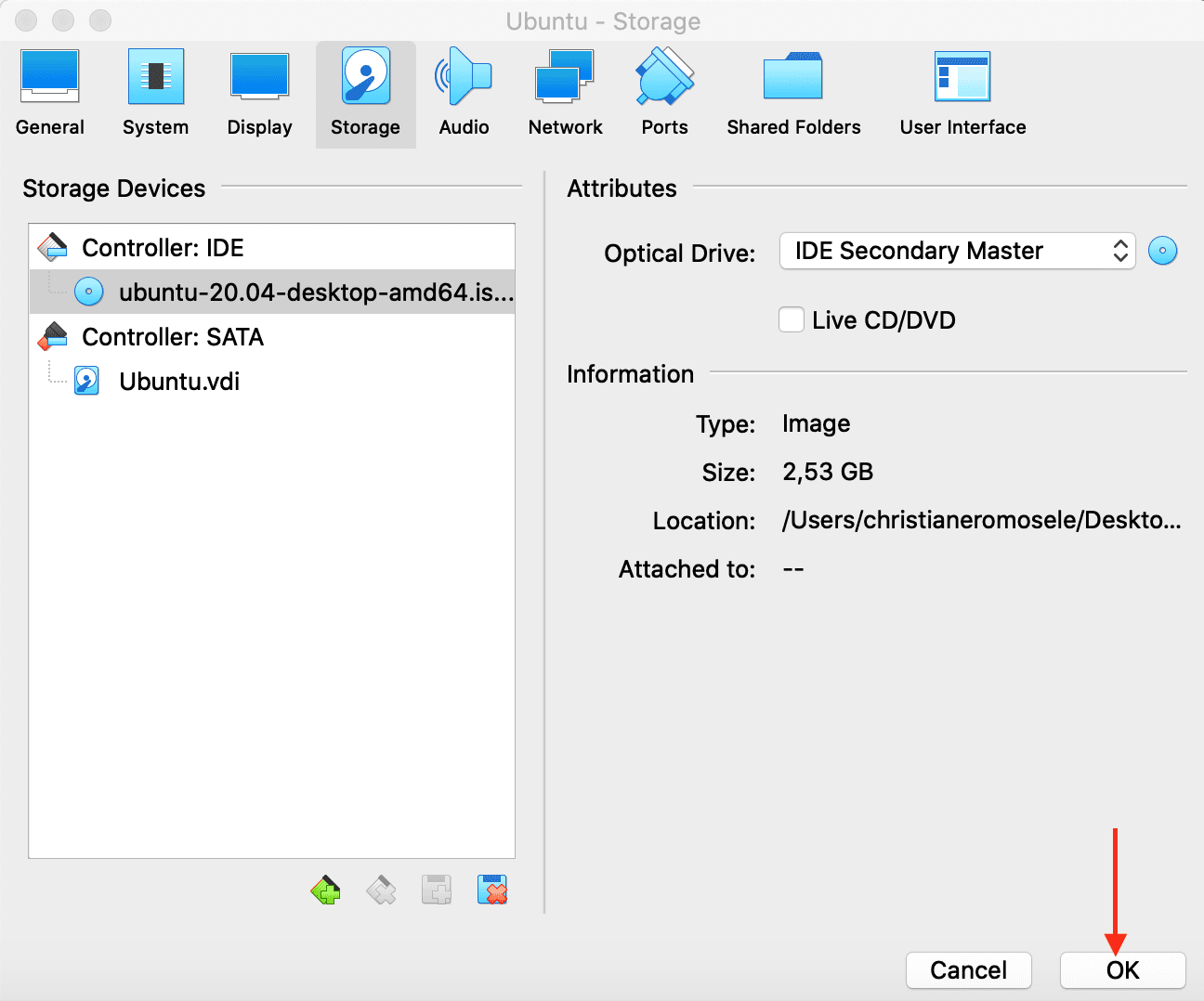

Select the ISO Image and click on OK

Step 3 – Install Ubuntu 20.04

To Install ubuntu, follow the steps below.

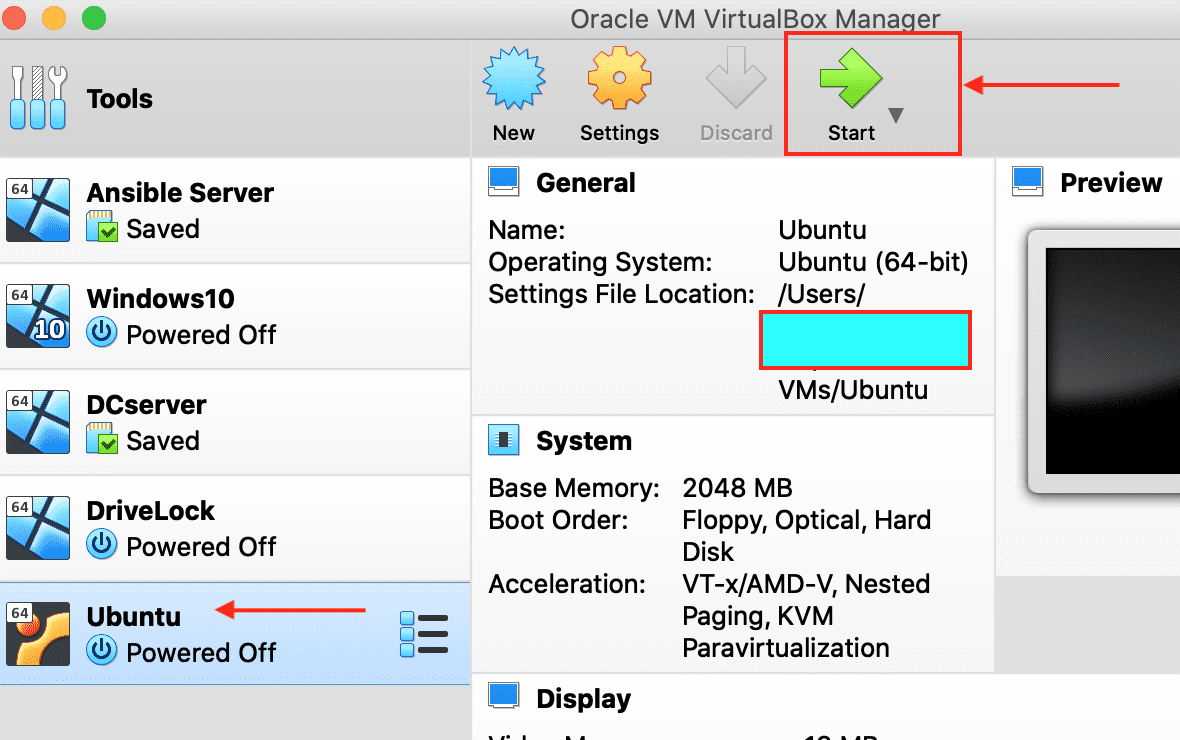

– Click on the new Ubuntu virtual machine
– Select the ‘Start’ button.

Click on the new Ubuntu virtual machine and click on start

This will perform so launch the Ubuntu machine in order to continue with the installation.

Ubuntu installation has started

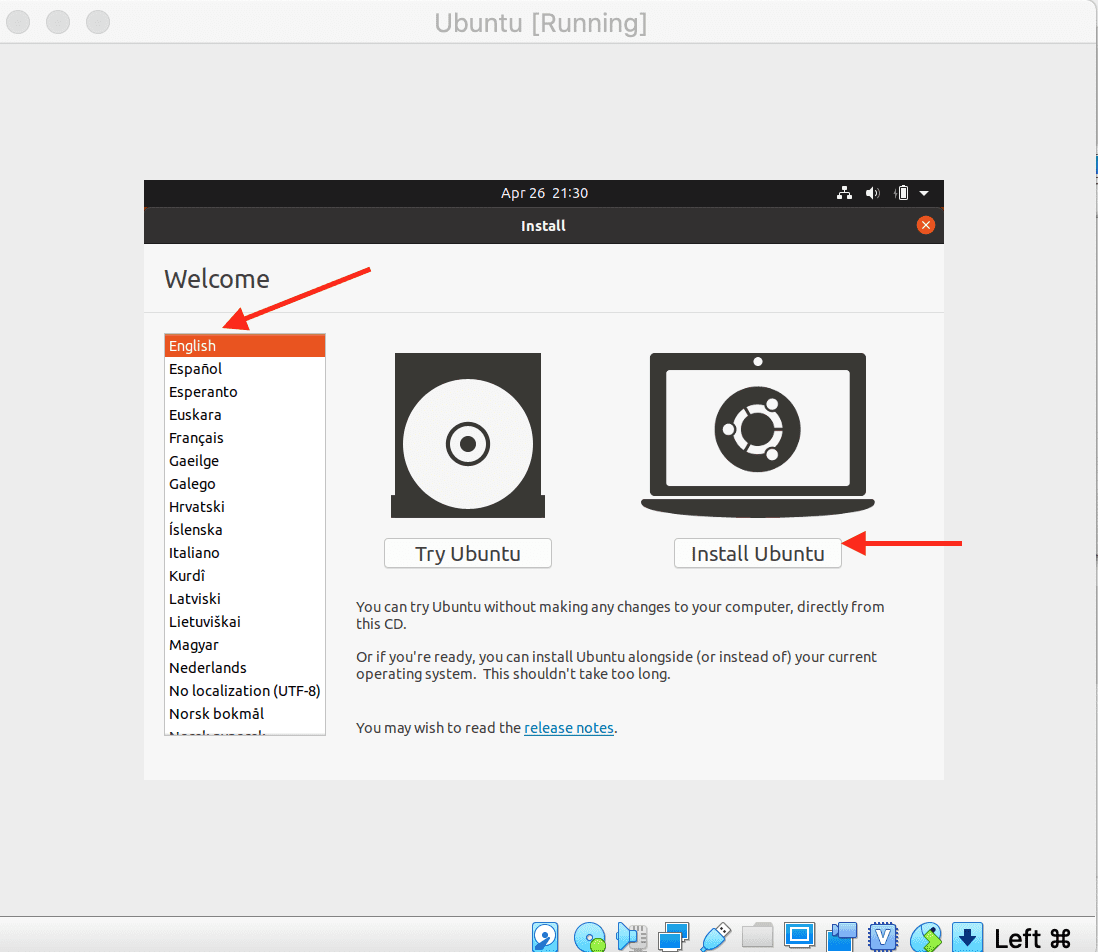

Select your desired language and click on Install Ubuntu as shown below.

Select language and click on install Ubuntu

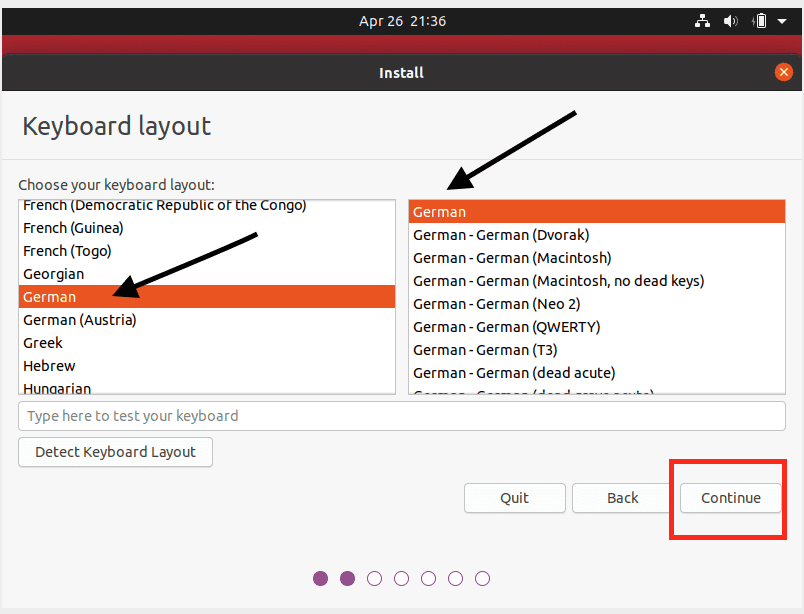

Select your desired Keyboard layout. I will be selecting German

Select language and continue

Select Normal Installation as shown below.
– If you would like to install Minimal Installation (This will have just the basic utilities and web browser).

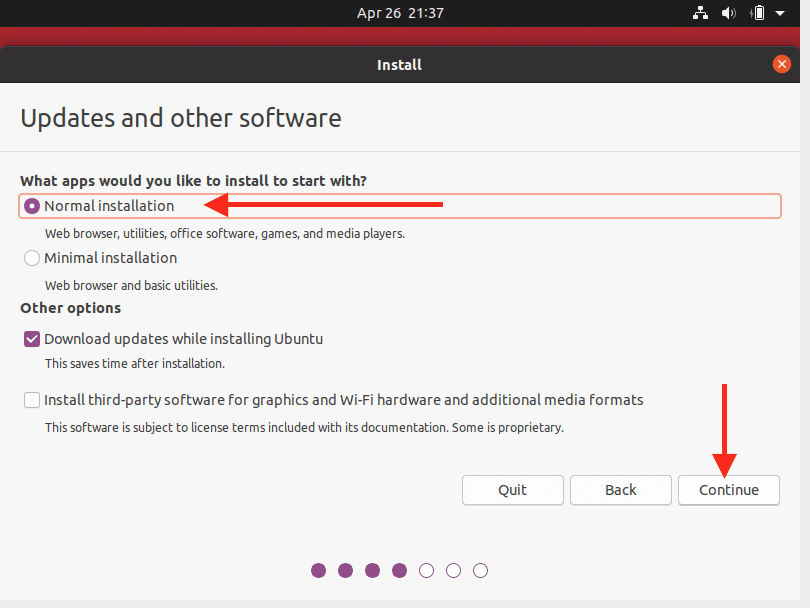

Select Normal installation and continue

Click on Install now. See the figure below for this
– When a new window is prompted click on continue to write changes to disks.

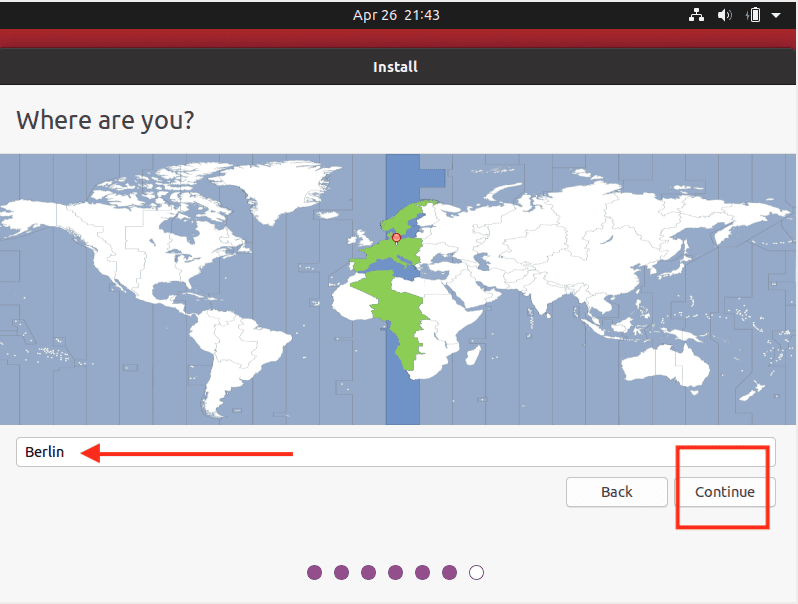

Click continue under where are you. I am ok with Berlin 😉

Select region and click on continue

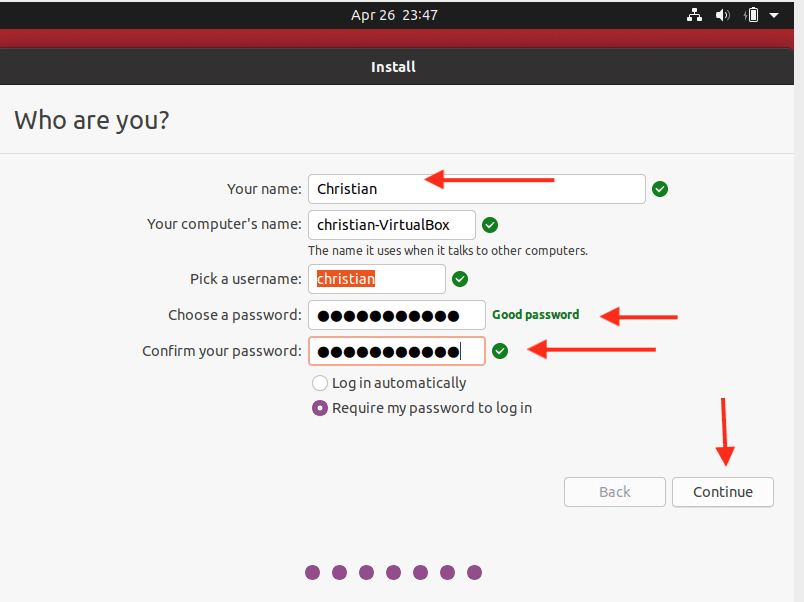

Setup an Account

Enter your relevant account information as shown below
– The computer’s name and username will automatically be populated.

Enter relevant account details and click on continue

Note: This user will have root/sudo privilege. Click ‘Continue’ button. The installation process will continue as shown below.

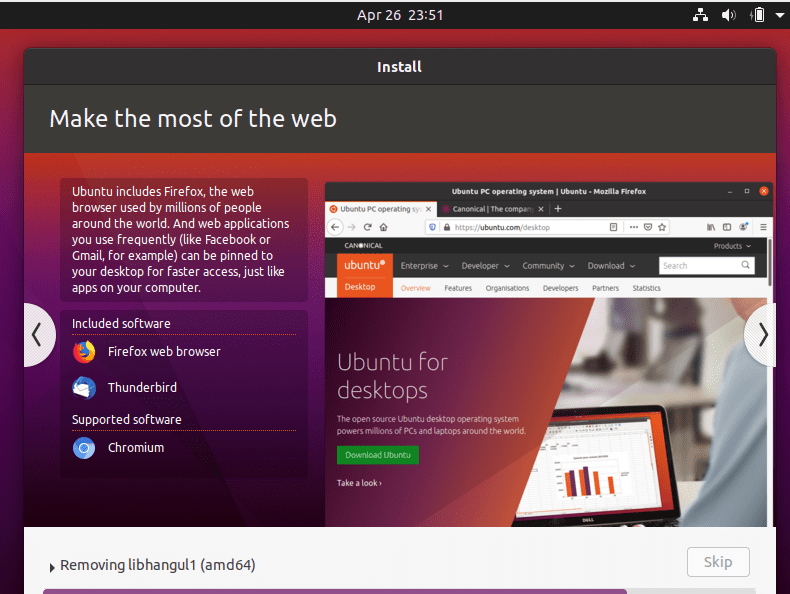

Ubuntu is curently installing

After installation is complete, click the ‘Restart Now’ button as shown below.

Restart you PC to use the new installation

When you see a screen with a black background saying ‘Please remove installation media and close the tray (if any) then press any key or ENTER on your keyboard. When this process is completed, the following window will be displayed.
– Click on your username and this will prompt you to enter your username.

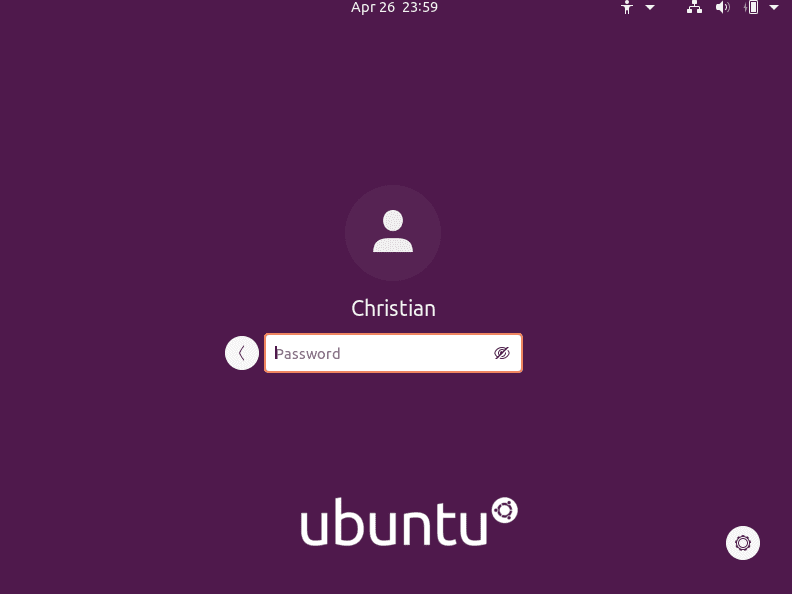

enter your password

The Ubuntu Desktop OS is ready. As you can see, the desktop screen is too small. To fix this the “VirtualBox Guest Additions” need to be installed. You may be required to connect your online account. Skip it and keep clicking on next and finally select done.

If you get a notification to install updates as shown below, PLEASE install the updates immediately.

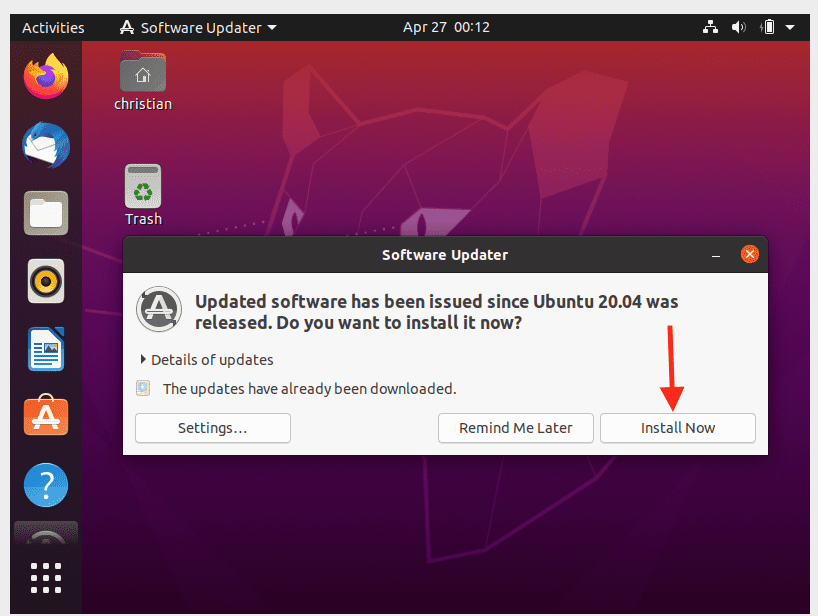

Install Update

Now you can start using your Linux device from henceforth. For Ubuntu Linux: Post-installation, Guest Integration and Web Administration of Linux see the following link.

That’s how you can install and configure Ubuntu Linux on VirtualBox. I hope you found this blog post helpful. If you have any questions, please let me know in the comment session.
